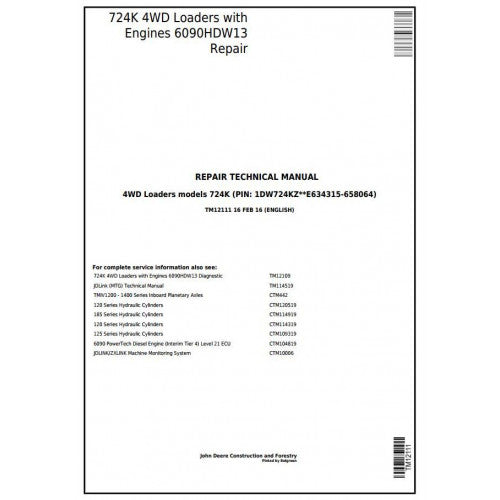

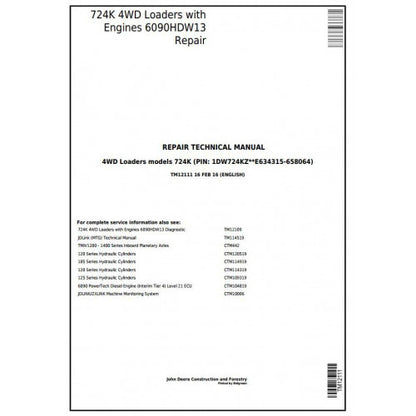

TM12111 John Deere 724K Loader Pdf Repair Service Technical Manual

Mandate Strict Iron Compliance: JD 724K Loader Reassembly

The John Deere 724K wheel loader is an essential heavy-duty asset in high-yield asphalt plants, vast logging yards, and demanding municipal waste facilities. For units specifically operating within the E634315 through 658064 serial number range, permitting your shop mechanics to guess articulation bearing limits or estimate final drive preloads introduces catastrophic safety and operational risks. The John Deere 724K 4WD Loader Repair Service Technical Manual (TM12111) establishes an uncompromising benchmark for your maintenance facility. It delivers the non-negotiable physical dimensions and manufacturer-certified assembly sequences required to restore this high-capacity material handler to its exact engineering baselines.

Ready for instant integration onto your shop floor, this mechanical blueprint enforces absolute quality control. It enables your heavy-line staff to independently execute massive iron restorations, entirely eliminating the scheduling chaos and inflated invoices tied to commercial dealership interventions.

Authoritative Mechanical Baselines for Heavy Loaders

Institute strict physical assembly protocols for your aggregate and utility fleet. This mechanical archive deliberately excludes electronic network testing and fluid flow analytics, delivering instead the mandatory dimensional data and safe handling sequences for the 724K's core physical architecture:

• Drivetrain & Torque Converter Compliance: Standardize the workbench overhaul of the heavy-duty transmission. Enforce strict clutch pack clearances, main shaft alignments, and planetary bearing preloads necessary for transferring maximum pushing power to the pile.
• Heavy Axle Tolerances: Institute exact reconstruction protocols for the inboard planetary systems and differentials. Utilize mandatory shim calculations, precise pinion backlash charts, and heavy fastening values to safely rebuild the front and rear axles directly on the bench.
• Z-Bar Linkage Standards: Combat severe structural fatigue in the forward lifting arms. Follow authorized heavy-pressing instructions and factory wear limits to securely extract and install massive boom pivot pins, Z-bar linkages, and rock bucket bushings.
• High-Capacity Hydraulic Sealing: Safely dismantle and repack the enormous lift and tilt cylinders. The manual provides the exact torque metrics for massive piston head retaining nuts, ensuring absolute fluid retention under extreme breakout forces.
• Prime Mover Mechanical Extraction: Execute the authorized heavy-rigging protocols, fluid disconnection steps, and unbolting sequences necessary to physically separate the main diesel block from the rear chassis for external bench repairs.

TM12111 Technical Blueprint Profile

Equipment Specifications	Mechanical Archive Details
Target Asset	John Deere 724K 4WD Loader
Serial Sequence	SN. E634315—658064
Publication Code	TM12111
Core Shop Utility	Mechanical Teardown & Heavy Physical Reassembly
File Architecture	Searchable Digital PDF Archive

Who Enforces Workshop Quality With This Document?

• Asphalt Plant Managers: Guarantee your primary material handlers meet stringent structural safety criteria before deploying them into continuous, high-temperature loading cycles.
• Logging Fleet Supervisors: Standardize your facility's repair practices for complex drivetrain teardowns, utilizing the precise engineering dimensions tailored exclusively for this specific JD production block.
• Independent Heavy-Line Technicians: Lower heavy machinery lifecycle expenses for your civil construction clients by performing major pin, bushing, and structural cylinder restorations in-house using certified factory data.

Workshop Standards FAQ

Does this guide establish testing protocols for flashing monitor codes?

No. Tracing electrical faults, processing Diagnostic Trouble Codes (DTCs), and evaluating CAN bus networks are strictly covered in the Diagnostic, Operation, and Test manual. TM12111 focuses purely on wrenches-on-iron structural rebuilding and hardware reassembly.

Are deep block boring or crankshaft replacement steps included?

This text outlines the safe mechanical extraction of the complete engine assembly from the loader's frame. Deep internal diesel block rebuilding requires a dedicated Component Technical Manual authored precisely for that powerplant.

Will this PDF provide flow testing charts for the main implement pump?

No. Fluid pressure benchmarking and hydraulic flow schematic mapping are analytical procedures housed within the Operation and Test manual. This repair guide covers only mechanical unbolting, resealing, and remounting of heavy hydraulic hardware.

Can our staff print the axle torque tables for use at the workbench?

Absolutely. The digital PDF architecture allows your heavy-line mechanics to print essential fastening charts and hardware explosion diagrams. This keeps vital numerical data directly on the shop floor while protecting your digital devices from heavy grease and site mud.

Command Your Heavy Iron Rebuilds

Enforce absolute repair quality across your earthmoving fleet. Secure the John Deere 724K Repair Manual TM12111 today and equip your facility with the uncompromised mechanical data required to restore your heavy loader to stringent factory standards.
