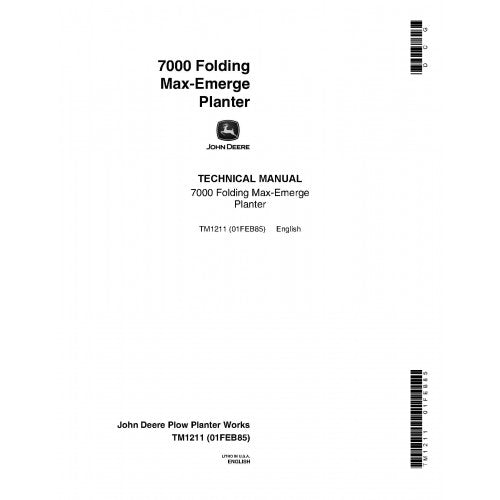

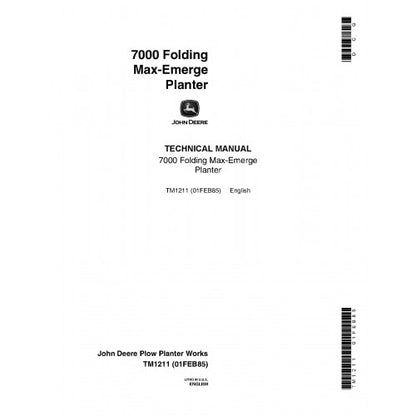

TM1211 John Deere Max-Emerge 7000 Folding Planter Pdf Technical Service Manual

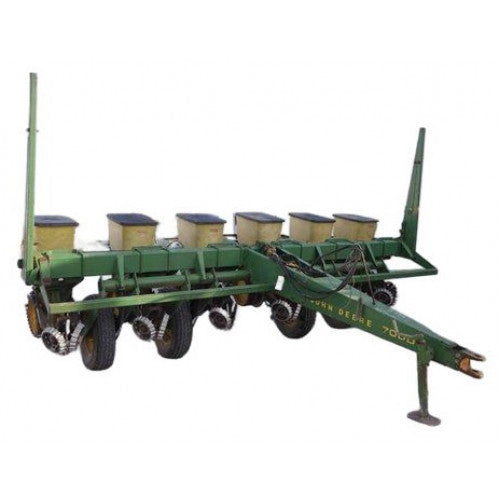

Precision Row-Crop Restoration: JD 7000 Max-Emerge Folding Planter

Achieving the perfect stand across hundreds of acres begins with uncompromising seed placement—a standard set globally by the legendary John Deere 7000 Max-Emerge planter. The revolutionary design of the Tru-Vee openers and depth-gauging system forever changed row-crop farming. However, decades of dragging heavy folding frames through compacted soils and navigating rough transport terrain exacts a heavy toll on parallel arms, hinge pivots, and delicate seed metering iron. When standard preseason lubrication fails to correct excessive row unit bounce or a sagging folding toolbar, the John Deere Max-Emerge 7000 Folding Planter Technical Service Manual (TM1211) is the definitive mechanical blueprint needed for a total restoration.

Available directly from the extensive archives at manualsmarket.com, this factory-authored mechanical guide equips your farm shop with the exact hardware extraction sequences, lifting tolerances, and structural alignments dictated by the original John Deere engineers. Reconstructing your folding planter to these strict OEM specifications is the only way to guarantee accurate seed depth, uniform spacing, and uninterrupted planting windows.

Heavy Iron Wrenching Modules

This technical service archive completely avoids electronic monitor troubleshooting, directing your mechanic's absolute focus onto the heavy physical wrenching required to restore this massive ground-engaging implement:

Row Unit & Tru-Vee Architecture

Eliminate depth variation and poor seed-to-soil contact. Master the physical teardown of the individual planter row units. This includes exacting procedures for replacing the Tru-Vee opener disks, rebuilding the parallel linkage bushings to remove slop, and overhauling the gauge wheel and closing wheel tensioning arms.

Seed Metering Mechanics

Restore pinpoint seed spacing. Navigate the physical extraction of the seed hoppers to rebuild the intricate finger pickup mechanisms or feed cup systems. The manual details the mechanical repair of the drive chains, tensioners, and the clutch assemblies that engage the seed drop.

Folding Frame & Chassis Hinges

Safely support the immense weight of the folding toolbar. Execute deep physical teardowns of the heavy main lift cylinders, replace worn pivot pins on the folding wing hinges, and structurally align the transport wheel axles to ensure safe highway travel.

Ground Drive & Marker Systems

Reconstruct the mechanical power delivery network. Discover the mechanical teardown steps for the heavy ground-drive contact wheels, the primary hex drive shafts, and the hydraulic row marker arm pivots and sequencing valves.

Planter Mechanic Q&A: TM1211 Parameters

Q: Will this manual help me fix a false alarm on my Computer Trak seed monitor?
A: No. All electrical schematics, seed tube sensor voltages, and cab monitor circuit tracing are entirely documented within the companion Diagnostic, Operation, and Test manual. This TM1211 publication is strictly dedicated to physical hardware replacement, mechanical teardowns, and heavy iron assembly.

Q: Are specific torque specs provided for the row unit parallel linkage bolts?
A: Absolutely. Because the row units encounter massive draft loads and must maintain perfect perpendicularity to the ground, the manual details mandatory torque specifications for all parallel arms to prevent unit bounce and catastrophic hardware failure during planting.

Q: Does this file cover the mechanical pumps for the liquid fertilizer attachments?
A: Yes. The mechanical unbolting, piston pump rebuilding, and drive linkage restoration for the factory liquid and dry fertilizer applicators are covered within this physical repair archive. Equipment Blueprint Profile

Equipment Line: John Deere 7000 Max-Emerge

Frame Configuration: Folding Toolbar Planter

Farming Application: Precision Row-Crop Planting

Publication Discipline: Technical Service (Mechanical Teardown, Hardware)

Official Reference ID: TM1211
