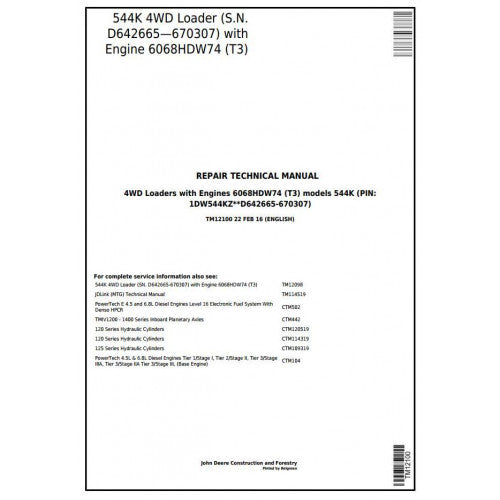

TM12100 John Deere 544K 4WD Loader Pdf Repair Service Technical Manual

Protect Your Loading Profitability: JD 544K Iron Restorations

The John Deere 544K wheel loader is a high-utilization revenue generator, serving as the daily profit engine for municipal utility yards, regional aggregate suppliers, and commercial site developers. When a critical structural component fails—such as a shattered planetary gearset or a severely leaking boom cylinder—the financial impact on your medium-duty operations is immediate. Transporting this 13-metric-ton loader to a commercial dealership for physical repairs destroys your weekly project margin and creates an expensive gap in your material flow. The John Deere 544K 4WD Loader Repair Service Technical Manual (TM12100) acts as your definitive financial shield against high-cost outsourced labor. Available, this comprehensive structural blueprint provides your internal maintenance staff with the exact manufacturer extraction steps required to execute deep mechanical overhauls for units within the D642665 through 670307 manufacturing block directly in your own shop.

By keeping massive component reconstruction strictly in-house, this structural reference completely neutralizes the financial hemorrhage associated with unpredictable vendor backlogs. It empowers your facility to reclaim total control over your equipment availability, ensuring your 544K loader remains active, reliable, and fiercely profitable.

Shield Your Capital With Internal Repair Autonomy

Reclaim complete authority over your fleet's maintenance expenditures. This document shifts your business strategy away from expensive external dependency, outlining the specific heavy-hoisting procedures and hardware reassembly sequences for the 544K's core physical architecture:

• Powertrain Capital Preservation: Cease paying premium dealership rates for heavy-duty transmission and torque converter bench rebuilds. This text specifies the mandated clearance tolerances, shaft alignments, and clutch pack assemblies necessary to restore flawless rim pull in the yard.
• Profitable Axle Rebuilds: Master the physical extraction and workbench reconstruction of the inboard planetary drives and differentials. Secure the precise shim calculations and fastening torques to replace massive axle hardware in-house without absorbing third-party markups.
• In-House Z-Bar Renewal: Eliminate expensive bucket sway that decelerates your truck-loading speed. Utilize the authorized thermal limits and heavy-pressing instructions to safely extract fatigued Z-bar pivot pins, forward lift arms, and bucket bushings.
• Implement Cylinder Resealing: Stop costly hydraulic fluid loss during maximum breakout operations. Safely tear down the lift and tilt cylinders, utilizing the mandated tightening procedures for piston retaining nuts to guarantee permanent high-pressure sealing.
• Prime Mover Hoisting Protocols: Execute the approved mechanical unbolting, fluid disconnection, and heavy rigging sequences necessary to lift the primary diesel powerplant from the rear frame for external block repairs.

TM12100 Technical Archive Profile

Asset Designation	Mechanical Document Parameters
Target Machinery	John Deere 544K 4WD Loader
Applicable Manufacturing Block	SN. D642665—670307
OEM Document ID	TM12100
Maintenance Focus	Hardware Teardown & Physical Reassembly
Format Architecture	Searchable Digital PDF Document

Who Protects Their Operating Budget With This Guide?

• Regional Utility Contractors: Safeguard your daily pipe-laying and backfilling quotas by handling linkage and pin replacements directly in your own garage before a failing component stalls your public works crew.
• Municipal Fleet Supervisors: Prevent costly site delays by bringing complex axle and transmission overhauls in-house during scheduled off-season maintenance windows.
• Independent Heavy Equipment Garages: Increase your local service revenue by confidently accepting lucrative 544K loader teardowns utilizing the exact OEM physical tolerances required for this specific production block.

Heavy Hardware Rebuild Inquiries

Will this file outline the steps to clear a flashing DTC network error?

No. Analyzing digital communication, deciphering Diagnostic Trouble Codes (DTCs), and evaluating electronic pilot sensors belong exclusively to the companion Diagnostic, Operation, and Test manual. This TM12100 file is strictly devoted to physical wrenches-on-iron reassembly and heavy structural restorations.

Can we utilize these blueprints to rebuild the internal diesel cylinder block?

This blueprint covers the safe extraction of the complete engine assembly from the loader's frame. Deep internal diesel repairs—such as pressing in new cylinder liners or replacing the crankshaft—require a separate Component Technical Manual authored specifically for that prime mover.

Are hydraulic schematic maps provided to test the main implement pump?

No. Hydraulic flow mapping, network schematics, and pressure benchmarking are analytical tasks found solely in the Operation and Test manual. This repair guide focuses strictly on the mechanical extraction, heavy resealing, and physical remounting of the main hydraulic hardware.

Is the digital architecture printable for torque charts in the field?

Absolutely. The digital PDF format allows your heavy-line mechanics to print specific fastening charts and exploded hardware diagrams. This keeps the essential numerical metrics directly on the workbench, protecting your digital devices from site mud and heavy grease.

Command Your Fleet's Profitability

Do not let a failing planetary gearset or heavily worn lift hardware dictate your project timeline. Secure the John Deere 544K Loader Repair Manual TM12100 today and arm your maintenance facility with the uncompromised mechanical data required to restore your earthmover to peak operating condition.
