Accelerating Forage Dry-Down: JD 1380 Mower-Conditioner

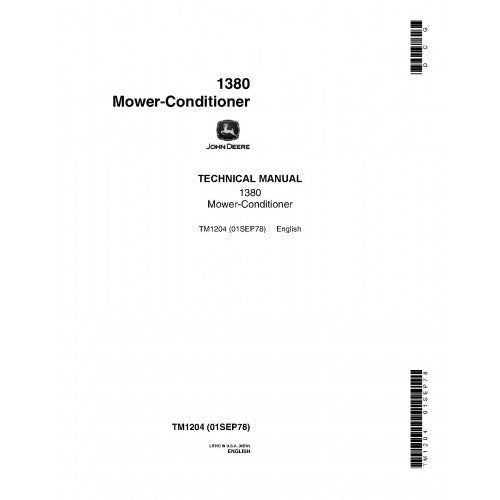

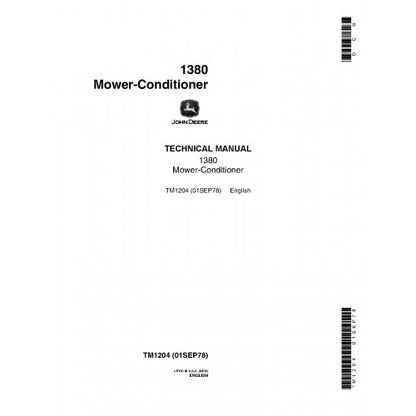

Securing high-protein forage requires slicing through dense, wet crops and immediately crushing the stems to accelerate the field curing process. The John Deere 1380 Mower-Conditioner was engineered to execute this brutal two-step process utilizing a high-speed sickle cutterbar and massive intermeshing conditioning rolls. However, the continuous violent oscillation of the knife drive and the heavy rotational mass of the crimping iron inevitably subject this pull-type implement to severe metal fatigue and bearing failure. When a shattered wobble box or misaligned conditioning rolls halt your hay production, the John Deere 1380 Mower-Conditioner Technical Service Manual (TM1204) provides the exact, uncompromising physical blueprint required for a complete structural restoration.
Procured directly from the extensive agricultural archives at manualsmarket.com, this factory-authored mechanical guide equips your farm mechanics with the precise hardware extraction sequences, heavy lifting capacities, and critical structural alignments established by the original engineers. Rebuilding this heavy-duty hay implement to strict OEM specifications guarantees an aggressive cut, proper stem crimping, and maximum reliability during narrow harvesting windows.
Implement Teardown & Heavy Iron Wrenching
This technical service volume intentionally omits all tractor-side electronic diagnostics and hydraulic flow testing. Its entire focus is directed toward actionable, physical hardware repairs for the implement's core mechanical zones:
Sickle Bar & Knife Drive Mechanics: Command the reciprocating cutting action. The manual details the heavy wrenching necessary to safely extract the main wobble box, rebuild the internal eccentric drives, replace shattered knife guards, and structurally realign the entire cutterbar backbone.
Conditioning Roll Extraction: Master the heavy rigging required to safely unbolt and hoist the massive crushing rolls. Discover the factory methods for replacing high-load bearing flanges, repairing roll timing gears, and physically calibrating the roll-gap tension springs to ensure consistent forage crimping.
Reel Assembly & Crop Delivery: Maintain flawless crop sweeping. Navigate the physical teardown of the sweeping reel, replace worn cam-track followers, rebuild the wooden or metal reel bats, and overhaul the heavy V-belt drives that synchronize the reel speed.
PTO Driveline & Gearbox Restoration: Reconstruct the tractor-driven power delivery network. The guide covers the mechanical extraction of the primary PTO shafts, overhauling the heavy-duty slip clutches, and rebuilding the main right-angle distribution gearbox that splits power to the cutterbar and rolls.
Tech Support Log: TM1204 Boundaries
Inquiry: Will this manual help me troubleshoot the tractor hydraulic remotes not lifting the header?
Factory Response: No. This TM1204 publication is dedicated entirely to the physical hardware, structural welding, and mechanical assembly of the JD 1380 implement itself. Any hydraulic fluid flow testing, pressure diagnostics, or tractor-side electrical troubleshooting must be sourced from the towing tractor's specific diagnostic manual.
Inquiry: Are specific tightening torques provided for the wobble box mounting hardware?
Factory Response: Absolutely. Because the knife drive assembly generates immense lateral vibration, the manual provides mandatory torque tightening charts and hardware grade requirements to prevent the cutterbar from tearing itself apart in the field.
Inquiry: Does this file cover the repair of the transport wheel hubs?
Factory Response: Yes. The mechanical unbolting, bearing repacking, and structural axle realignment for the primary transport wheels and tongue pivot mechanisms are fully detailed within this physical repair archive.
Machinery Blueprint Parameters
- Implement Line: John Deere 1380
- Machine Classification: Pull-Type Mower-Conditioner
- Crop Application: Hay Cutting and Stem Conditioning
- Service Discipline: Technical Service (Mechanical Teardown, Hardware Reconstruction)
- Official Reference Code: TM1204
