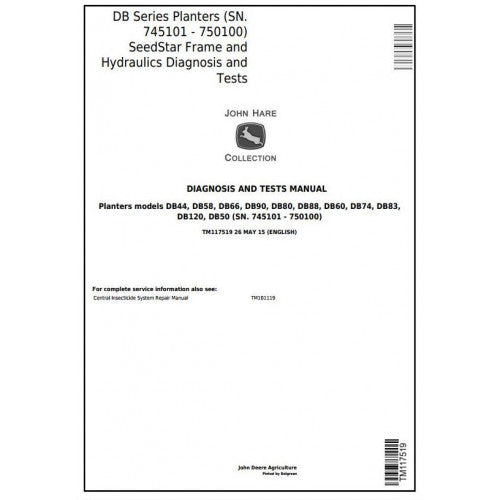

TM117519 John Deere DB Ser. Planters Seed Star Frame & Hydraulics Pdf Diagnosis and Tests Service Manual

TM117519 John Deere DB Ser. Planters (SN.745101-750100) Seed Star Frame & Hydraulics Pdf Diagnosis and Tests Service Manual

Get instant access to the John Deere Pdf Diagnostic, Operation and Test Service Manual in high-quality PDF format. Perfect for DIY repairs, maintenance, and professional servicing of your John Deere machinery. Includes detailed diagrams, troubleshooting guides, step-by-step repair instructions, and more. perfect for farmers, mechanics, and John Deere Equipment's enthusiasts. Whether you're working on the engine, hydraulics, transmission, or electrical systems, this manual provides step-by-step guidance to keep your equipment running smoothly. Instantly downloadable and compatible with all devices.

Language: English
Format: PDF, 1502 pages

Covered models (SN.745101-750100):
   DB44
   DB50
   DB58
   DB60
   DB66
   DB74
   DB80
   DB83
   DB88
   DB90
   DB120

Contents:

   Foreword
   General Information
      Acronym Table
      How to Use This Manual
      Safety
      Lubricants
      Accessing Diagnostic Addresses and Codes
      Recommended Tools for Diagnostics
      Diagnostic Information for Electrical Components
      Diagnostic Information for Hydraulic Components
      Maintaining Hydraulic Systems and Components
      Basic Diagnostics
      Standard Torque Chart Procedures
   Diagnostic Trouble Codes
      Accessing Diagnostic Trouble Codes
      PA1 - Planter Auxiliary 1 Codes
      PA2 - Planter Auxiliary 2 Codes
      PM1 - Planter Main 1 Codes
      PM2 - Planter Main 2 Codes
   Observable Symptoms and System Diagnostics
      Observable Symptoms
   Electrical
      Theory of Operation
      Schematics - Frame Systems
      Schematics - CAN Bus
      Schematics - Enhanced Monitoring
      Schematics - Row Command
      Schematics - Seed Monitoring
      Diagnostics
   Electrical Control Units
      Accessing Diagnostic Addresses
      Diagnostic Addresses by Control Unit
      Diagnostic Tests and Adjustments
   Electrical Component Information
      XA - Connectors
      XB - Connectors
      XE - Connectors
      XF - Connectors
      XG - Connectors
      XK - Connectors
      XM - Connectors
      XS - Connectors
      XX - Connectors
      XY - Connectors
   Hydraulics
      Operational and Preliminary Checks
      Theory of Operation
      Schematics
      Diagnostic Tests and Adjustments
   Hydraulic Component Information
      Cylinders
      Check Valves
      Filters
      Manifolds
      Oil Coolers
      Motors
      Orifices
      Reservoirs
      Valves
      Coupler
      Solenoid Valves
   Pneumatics
      Theory of Operation
      Schematics
      Diagnostic Tests and Adjustments
   Pneumatic Components
      Accumulators
      Sensors
      Check Valves
      Filters
      Assembly Groups
      Pumps
      Reservoirs
      Switches
      Valves
      Couplers or Diagnostic Receptacles
      Solenoid Valves
