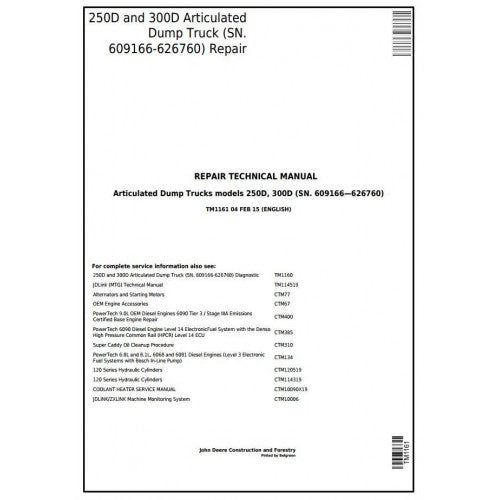

TM1161 John Deere 250D, 300D Articulated Dump Truck Pdf Technical Service Manual

Iron Overhaul & Mechanical Reassembly: JD 250D & 300D

Pushing thousands of tons of aggregate and overburden across unpaved terrain creates massive torsional stress on heavy hauling equipment. The John Deere 250D and 300D articulated dump trucks are built to absorb this punishment, but machines operating within the serial number block 609166 to 626760 will inevitably require deep-level hardware restoration. When the central oscillation joint develops dangerous play or an outboard planetary gear requires a complete bearing overhaul, improvising with generic shop methods will compromise the machine's load-bearing integrity. The John Deere 250D and 300D Technical Service Manual (TM1161) supplies the exact mechanical blueprints and extraction sequences needed to physically rebuild these earthmovers to factory-grade tolerances.

By bringing this critical iron-rebuilding reference from manualsmarket.com directly to your service bay, you eliminate the delays of waiting for dealership mechanics. Your in-house diesel technicians gain the precise torque figures, gear lash measurements, and heavy rigging protocols necessary to handle complex drivetrain and chassis overhauls independently.

Core Hardware Teardown Procedures

This repair publication strictly focuses on wrenches-on-iron extraction and component rebuilding, bypassing digital theory to provide actionable mechanical data:

• Articulation & Oscillation Hitch: Safely separate the front and rear frames. The manual dictates the heavy pressing sequences and block-and-tackle rigging required to extract and replace the massive center pivot pins and spherical bearings.
• Drivetrain & Drop Box Reconstruction: Execute a total internal overhaul of the D-Series transmission system. Access the exact shaft alignment data, bearing preload specifications, and clutch pack stack-up dimensions critical for a reliable powertrain rebuild.
• Heavy-Duty Axle & Planetary Overhaul: Prevent catastrophic lock-ups under load. Follow systematic teardown instructions for the differential carrier, including the precise shimming procedures required for the final drive planetary assemblies.
• Dump Body Hoist & Steering Cylinders: Restore lifting capacity and directional control. The text outlines the specific gland nut tightening patterns, extraction techniques, and internal seal replacement steps for all primary high-pressure hydraulic cylinders.
• Hydro-Pneumatic Suspension Repair: Manage the specialized maintenance of the hauler's ride control system safely. Follow strict wear limits and extraction procedures for the massive suspension struts.

D-Series Mechanical FAQ

Where can I find the Diagnostic Trouble Codes (DTCs) and wiring schematics for this truck?

Electrical circuit tracing, CAN bus data, sensor analytics, and active fault codes are strictly documented in the Diagnostic, Operation, and Test manual. This TM1161 publication is reserved exclusively for heavy mechanical teardowns, hardware extraction, and physical structural rebuilding.

Does this manual guide me through rebuilding the internal diesel engine components?

This technical service document provides the safe rigging points, hose disconnections, and bracket removal sequences required to extract the complete power plant from the front frame. However, deep internal engine repairs—such as machining the crankshaft or installing new cylinder liners—demand a dedicated Component Technical Manual tailored directly to that specific power plant.

Are specific torque values for the final drives and wheel hubs included?

Yes. Throughout every disassembly and reassembly chapter, the document provides the mandatory torque charts, specific tightening patterns, and thread-locker chemical applications necessary to secure the machine's heavy hardware.

TM1161 Document Specifications

Equipment Identity	Technical Documentation Details
Applicable Haulers	John Deere 250D and 300D Articulated Dump Truck
Serial Number Range	Valid from SN. 609166 through 626760
Manual Reference ID	TM1161
Procedural Focus	Technical Service (Physical Teardown & Reassembly)
Delivery Architecture	Searchable Digital PDF

Primary Beneficiaries of This Repair Standard

• Civil Engineering Fleets: Standardize your in-house repair quality and take on major axle reconstructions armed with the exact dimensions required for this specific D-Series production run.
• Independent Earthmoving Mechanics: Reduce total equipment lifecycle costs by performing major mechanical pin, bushing, and cylinder seal replacements internally rather than paying premium dealer rates.
• Quarry Maintenance Shops: Ensure that every structural repair or heavy gearbox you service meets strict safety and performance standards before the hauler returns to the haul road.

Re-Establish Your Fleet's Hauling Capacity

Do not let a compromised articulation joint or a failing planetary gear dictate your earthmoving schedule. Acquire the John Deere 250D/300D Repair Manual TM1161 today and provide your heavy line mechanics with the uncompromised mechanical blueprints required to restore your articulated dump trucks to maximum productivity.
