TM1153 John Deere 484 Cotton Strippers Pdf Technical Service Manual

Aggressive Cotton Harvesting: JD 484 Cotton Strippers

Unlike traditional spindle pickers, the John Deere 484 cotton stripper employs a brutal, full-plant harvesting method. Utilizing aggressive brush and bat stripping rolls, this machine ingests the entire cotton boll alongside heavy stems, dirt, and abrasive field debris. This high-volume, continuous intake guarantees severe physical wear on the cross augers, the green boll separator, and the massive pneumatic delivery fans. When your harvest is threatened by a seized stripping unit gearbox or a shattered fan shaft bearing, standard field maintenance will not save your season. You must rely on the John Deere 484 Cotton Strippers Technical Service Manual (TM1153) to execute a precise, factory-grade mechanical restoration.

Procured straight from the agricultural archives at manualsmarket.com, this factory-authored physical blueprint provides your heavy equipment mechanics with the exact hardware extraction sequences, structural alignments, and critical lifting weights established by the original engineers. Reconstructing your cotton stripper to these uncompromising OEM standards ensures aggressive plant stripping, prevents explosive hardware failures, and maximizes your daily acreage.

---

Heavy Iron Teardown Procedures

This technical service archive completely avoids electrical circuit tracing, directing all its specialized data strictly toward the heavy wrenching and hardware reconstruction of the stripper's primary mechanical zones:

• Stripping Unit Architecture: Master the heavy rigging required to safely dismantle the front harvesting units. The manual provides exact procedures for replacing worn brush and bat rolls, rebuilding the unit gathering chains, and overhauling the heavy-duty gearboxes that power the stripping action.
• Material Separation & Delivery: Maintain clean cotton flow to the basket. Navigate the physical teardown of the heavy cross augers, replace the abrasive-wear components inside the green boll separator, and completely rebuild the high-speed pneumatic blower fan and its drive bearings.
• Hydrostatic Propulsion Hardware: Ensure continuous tractive power through soft, defoliated fields. Discover the teardown steps to safely unbolt the main hydrostatic drive pumps, rebuild the planetary final drives, and service the rear steering axle mechanisms.
• Basket & Compactor Mechanics: Safely support the immense weight of the cotton basket. Execute deep physical teardowns of the heavy main lift cylinders, structural hinges, and the mechanical linkages operating the roof compactors.
• Top-Mounted Engine Rigging: Protect the primary diesel power plant. Follow strict safety protocols to drain the industrial cooling networks, attach specialized lifting brackets, and hoist the heavy engine block cleanly away from the upper chassis deck for independent bench servicing.

Mechanic's Service Boundaries (TM1153)

Will this manual help me troubleshoot the cab monitor and warning alarms?
No. All electrical schematics, wire harness routing, and diagnostic trouble codes (DTCs) are exclusively documented in the companion Diagnostic, Operation, and Test manual. This TM1153 publication handles physical hardware replacement, mechanical teardowns, and iron reassembly exclusively.

Are specific tightening torques provided for the stripping unit gearboxes?
Yes. Because the stripping units ingest heavy foreign material and operate under massive torque loads, the manual details mandatory tightening specifications for all rotating hardware and bearing housings to prevent catastrophic internal collisions.

Does this guide cover rebuilding the internal pistons of the engine?
While this document details the complex physical unbolting and removal of the engine from the stripper chassis, deep internal diesel repairs require the separate Component Technical Manual (CTM) authored specifically for that exact engine platform.

Machinery Specification Profile

Equipment Identity	Technical Details

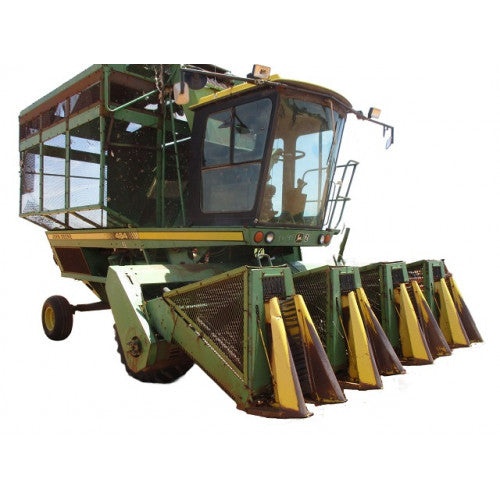

Supported Machine	John Deere 484
Harvesting Classification	Self-Propelled Cotton Stripper
Crop Processing Method	Brush and Bat Roll Stripping
Service Discipline	Technical Service (Mechanical Teardown, Hardware Reconstruction)

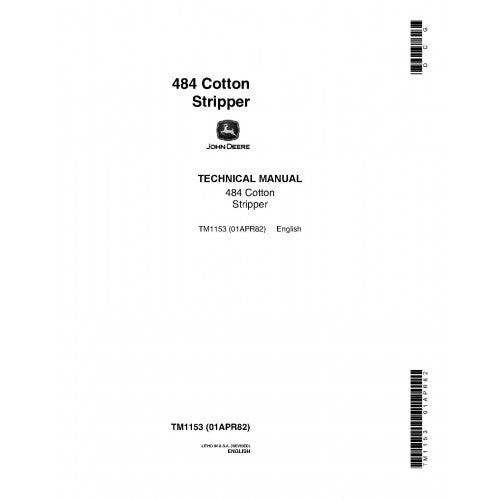

Official Reference ID	TM1153

A worn cross auger or a failing blower fan can completely choke your cotton harvesting operation. Equip your repair facility with the John Deere 484 Cotton Stripper Repair Manual TM1153 today, and secure the vital physical data needed to keep this high-capacity machine in the field.
