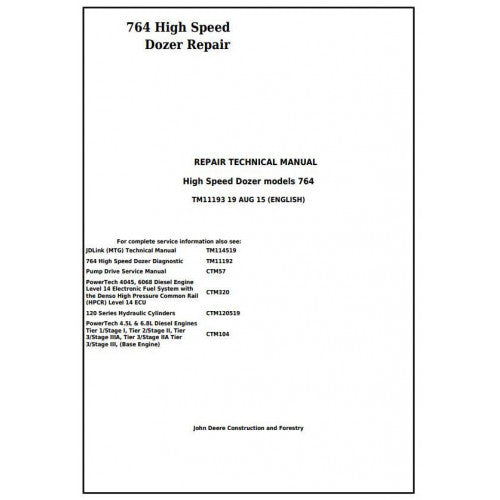

TM11193 John Deere 764 High Speed Crawler Dozer Pdf Repair Service Technical Manual

John Deere 764 High Speed Crawler Dozer Service Repair Technical Manual (Mechanical)

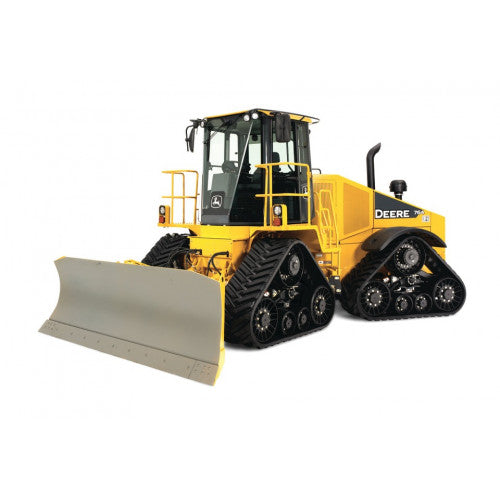

The 764 High Speed Dozer is a unique engineering marvel, combining the agility of a motor grader with the flotation of a crawler. When this specialized machine requires structural restoration or a powertrain swap, standard dozer data is insufficient. To maintain its high-velocity grading performance, you need the specific John Deere 764 manual type designed for articulated track architecture. By securing this TM11193 PDF download, your shop gains the exact factory OEM manual utilized by dealership experts for heavy mechanical overhauls. We deliver this critical workshop guide as a fully searchable PDF, providing your technicians with instant access to articulated pivot clearances, rubber track tensioning specs, and engine extraction protocols to keep your high-speed fleet moving.

TM11193 Technical Specifications & Manual Profile

• Target Equipment: John Deere 764 High Speed Crawler Dozer
• Manufacturer Document ID: TM11193
• Manual Classification: Service Repair Technical Manual (Mechanical Hardware)
• Primary Workshop Utility: Physical Teardowns, Component Extraction, Structural Rebuilds
• Engine Coverage: 6.8L PowerTech (Mechanical Aspects)
• File Format: Instant Digital Download (High-Resolution, Bookmarked PDF)
• Language: English

Mastering the Unique Mechanics of the 764 Articulated Chassis

The 764 is built for speed and precision finish grading. Unlike traditional rigid-frame dozers, its articulated chassis and four-track rubber system introduce specialized mechanical requirements. This TM11193 publication focuses 100% on the hardware, providing the pathways required to dismantle and reconstruct this complex machine.

Articulated Pivot and Oscillation Repair

The heart of the 764's agility is its center articulation joint. Over thousands of hours, the immense oscillating forces can cause wear in the hitch area. This manual provides the structural blueprints for splitting the machine, replacing the massive pivot pins, and installing fresh oscillation bushings. It outlines the exact safety rigging and blocking procedures needed to stabilize the front and rear frames during this high-stakes mechanical procedure.

6.8L PowerTech Engine & Hydrostatic Pump Extraction

Safely hoisting the diesel engine from the 764’s chassis requires a strict sequence to avoid damaging the specialized high-speed cooling array. This chapter details the comprehensive steps for unbolting the 6.8L power unit, including the mandatory rigging orientations and center-of-gravity lifting points. It also covers the physical extraction of the hydrostatic pump stack, detailing the specific clearances required to move heavy components within the articulated frame.

Rubber Track System & Final Drive Overhaul

The 764 utilizes a unique four-track rubber undercarriage to achieve high travel speeds. When track belts require replacement or rollers suffer bearing failure, this manual provides the specific tensioning protocols and hardware torque values. Furthermore, it delivers the exploded structural views and disassembly blueprints for the planetary final drives, including the shim-selection mathematics required to set the perfect bearing preload for high-speed operation.

Implement Linkage & Cylinder Repacking

To maintain grader-like precision, the 6-way blade linkage must remain tight. This guide provides the mechanical instructions for replacing worn trunnion balls and pivot bushings. Additionally, you will find the physical repacking blueprints for the hydraulic lift, tilt, and angle cylinders, strictly defining the gland nut torque required to prevent high-pressure seal failure during rapid grading cycles.

Critical Boundary: Mechanical Repair vs. Diagnostics

In accordance with John Deere's technical publishing division, this document focuses strictly on physical wrenches-and-metal repairs. It does NOT contain Diagnostic Trouble Codes (DTCs), electrical schematics, or software calibrations. If your 764 is experiencing sensor faults, monitor errors, or requires hydrostatic drive tuning, you must reference the separate companion Operation and Test Technical Manual (TM11192).

Equip Your Shop via Manualsmarket.com

Utilizing generic crawler data on a specialized 764 High Speed Dozer leads to incorrect torque specs and dangerous lifting mistakes. At Manualsmarket.com, we guarantee the delivery of the verified, manufacturer-direct TM11193 PDF. Protect your technicians and your unique machinery investment by supplying your facility with the definitive OEM structural blueprints.

Workshop FAQ for the John Deere 764 (TM11193)

Does this manual cover the rubber track replacement process?

Yes. The undercarriage section provides the detailed mechanical steps for relieving track tension and physically removing/installing the rubber track belts for both the front and rear assemblies.

Will this file help me troubleshoot an engine "Check Monitor" light?

No. Dashboard error codes, transmission software issues, and electrical testing are entirely reserved for the diagnostic Operation and Test manual. This specific guide is dedicated purely to replacing and rebuilding hard iron components.

Are the articulated hitch torque specifications included?

Absolutely. You will find exhaustive, easy-to-read torque charts covering the critical center pivot hardware, ensuring the articulated joint is secured to exact factory specifications.

Can I quickly search for a specific part description?

Yes. Because this is a high-resolution, natively searchable digital PDF, you can use the search bar on your computer or tablet to instantly jump to any specific component name or torque value in seconds.
