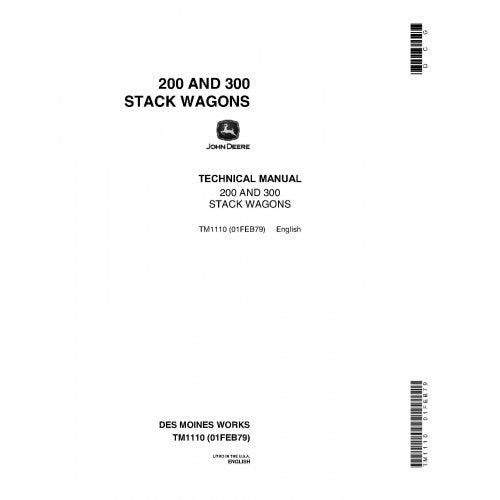

TM1110 John Deere 200 and 300 Stack Wagons Pdf Technical Service Manual

Preserving Loose Hay Heritage: JD 200 & 300 Stack Wagons

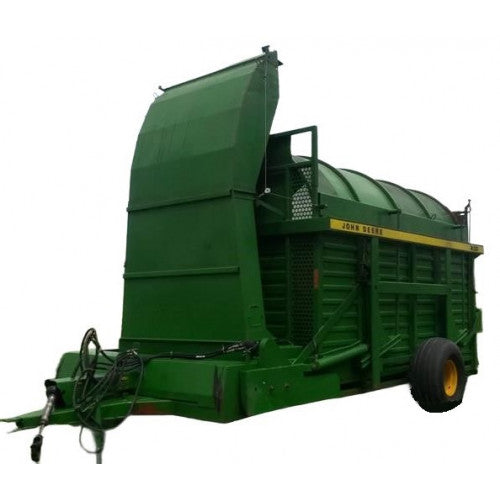

Before the widespread adoption of large round balers, managing massive volumes of dry forage meant relying on the brute force of loose hay compression. The John Deere 200 and 300 Stack Wagons revolutionized this process by pulling loose crop from the windrow, blowing it into a massive chamber, and utilizing heavy hydraulic canopies to compress the forage into weather-resistant loaves. Operating these unique implements requires managing immense hydraulic pressure, high-speed blower fans, and heavy-duty live floors. When the massive packing roof binds up or the main apron chains snap under the weight of a multi-ton stack, standard farm repairs fall short. The John Deere 200 and 300 Stack Wagons Technical Service Manual (TM1110) provides the exact, uncompromising physical blueprint required to resurrect these heavy forage machines.

Sourced directly from the implement preservation archives at manualsmarket.com, this factory-authorized mechanical guide equips your agricultural repair shop with the precise hardware extraction sequences, safe lifting procedures, and critical structural alignments established by the original engineers. Rebuilding your stack wagon to these strict OEM standards ensures aggressive crop pickup, massive compression ratios, and safe unloading of your hay stacks.

---

Core Implement Teardown Zones

This technical service volume intentionally omits all tractor-side electronic diagnostics and monitor tracing, dedicating its deep physical knowledge strictly to the heavy wrenching and hardware reconstruction of the wagon's unique mechanics:

• Crop Pickup & Blower Assembly: Maintain high-capacity forage intake. The manual details the heavy wrenching necessary to safely extract the high-speed blower fan, rebuild the gathering teeth on the pickup drum, replace shattered fan bearings, and structurally realign the primary delivery chute.
• Hydraulic Packing Canopy: Command the compression cycle. Master the heavy rigging required to safely support the massive packing roof. Discover the factory methods for removing the main hydraulic compression cylinders, replacing worn pivot hinges, and calibrating the mechanical latches that secure the canopy during transport.
• Live Floor & Apron Chains: Ensure smooth stack unloading. Navigate the physical teardown of the rear discharge door, overhaul the heavy-duty apron chain sprockets, and rebuild the mechanical or hydraulic drives that push the multi-ton hay loaf out of the chamber.
• PTO Driveline & Running Gear: Reconstruct the tractor-driven power delivery network. The guide covers the mechanical extraction of the primary PTO shafts, overhauling the right-angle gearboxes, and executing deep physical teardowns of the heavy-duty tandem walking beam axles that carry the massive payload.

Service Bay Clarifications: TM1110 Scope

Will this manual help me troubleshoot the tractor's hydraulic remote flow?
No. The John Deere 200 and 300 are hydraulically and mechanically driven implements. Any diagnostic fluid flow testing, pressure diagnostics, or electrical troubleshooting must be sourced from the towing tractor's specific diagnostic manual. This TM1110 publication handles the physical hardware replacement and mechanical teardowns of the wagon exclusively.

Are specific fastening torques provided for the blower fan?
Absolutely. Because the blower assembly generates immense rotational velocity to throw heavy forage into the wagon, the manual provides mandatory torque tightening charts and hardware grade requirements to prevent the fan blades from separating and causing catastrophic damage.

Does this physical repair guide cover the rebuilding of the hydraulic packing cylinders?
Yes. The mechanical unbolting, internal rod seal replacement, barrel honing guidelines, and physical reassembly of the implement's massive compression cylinders are fully detailed within this service archive.

---

Equipment Blueprint Parameters

Machinery Identity	Technical Details
Supported Implements	John Deere 200 and 300
Equipment Classification	Stack Wagons (Loose Hay Harvesters)
Crop Application	Forage Gathering and Compression
Service Discipline	Technical Service (Mechanical Teardown, Hardware Reconstruction)
Official Reference ID	TM1110

A shattered blower bearing or a seized apron chain can permanently halt your loose hay harvest, leaving valuable forage exposed to the elements. Equip your farm workshop with the John Deere 200 & 300 Stack Wagon Repair Manual TM1110 today, and secure the vital physical data needed to keep this heavy implement compressing strong.
