TM1080 John Deere 6601 and 6602 Combines Pdf Technical Service Manual

Mastering Vintage Extremes: JD 6601 Pull-Type & 6602 Hillside Combines

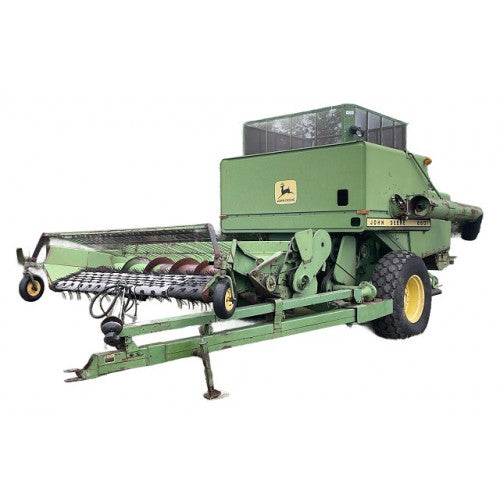

The John Deere 6601 and 6602 represent two highly specialized solutions from the golden era of conventional harvesting. The 6601 pull-type combine relied on heavy tractor PTO power to process crops without a dedicated engine, while the 6602 Hillside combine was a self-propelled engineering marvel designed to conquer the extreme, steep-gradient slopes of regions like the Palouse. Despite their vastly different operating environments, they share a robust core threshing architecture that eventually requires deep physical restoration. When the leveling rack on a 6602 develops dangerous structural play, or the primary PTO gearbox on a 6601 shears a shaft, the John Deere 6601 and 6602 Combines Technical Service Manual (TM1080) is the only definitive mechanical blueprint for the job.

Procuring this specialized vintage archive directly from manualsmarket.com ensures that your restoration shop or farm mechanics have the exact hardware extraction sequences, lifting rigging data, and structural tolerances required by the original factory engineers. Rebuilding these unique harvesters to strict OEM standards is the only way to ensure safe operation on steep hills or behind heavy towing tractors.

---

Targeted Mechanical Restoration Zones

This technical service manual intentionally excludes all electrical diagnostics and software testing, directing absolute focus onto the heavy physical wrenching required to restore these classic machines:

• Hillside Leveling Iron (6602): Safely block and dismantle the complex leveling framework unique to the 6602. Access the precise mechanical steps for extracting massive pivot bearings, rebuilding the heavy-duty drop-axles, and overhauling the final drive reduction housings that keep the machine upright on severe slopes.
• Pull-Type Drivelines (6601): Reconstruct the tractor-driven power delivery system. The guide details the mechanical teardown of the heavy primary PTO shafts, the main distribution gearboxes, and the belt-drive networks that power the threshing drum.
• Shared Threshing Architecture: Navigate the heavy hoisting required to safely remove the conventional threshing cylinder. Discover the original factory methods for balancing replacement rasp bars and aligning the heavy-duty concave hardware.
• Crop Separation & Walker Overhauls: Rebuild the primary straw walker canopy. Replace traditional wooden block bearings, overhaul the long metal crankshafts, and repair the physical linkages driving the grain pan.
• Power Plant Extraction (6602): Securely manage the primary diesel engine on the self-propelled model. Execute strict safety instructions to drain fluids, attach specialized lifting chains, and hoist the engine block away from the chassis for independent bench servicing.

Vintage Restorer's Inquiries: TM1080

Will this manual help me troubleshoot the dashboard gauges on my 6602?
No. All electrical schematics, gauge wiring, and circuit fault tracing are exclusively documented in the Diagnostic, Operation, and Test manual. This TM1080 publication focuses 100% on physical hardware replacement, mechanical teardowns, and iron reassembly.

Are there specific torque specifications for the 6602 hillside final drives?
Yes. Managing the immense lateral forces generated when harvesting on steep slopes requires absolute precision. The manual provides mandatory torque tightening charts for all drive axles, planetary gears, and pivot points to prevent catastrophic structural failure.

Does this guide cover rebuilding the internal components of the engine?
While this archive details exactly how to unbolt, rig, and extract the complete engine assembly from the 6602 chassis, deep internal diesel reconstruction (like replacing the crankshaft or pistons) requires the specific Component Technical Manual (CTM) authored for that vintage engine block.

Machine Specification Directory

Publication Parameters	Equipment Profile
Pull-Type Harvester	John Deere 6601 (Tractor-Drawn)
Self-Propelled Harvester	John Deere 6602 Hillside (Steep Gradient)
Harvesting Architecture	Vintage Conventional Threshing
Manual Discipline	Technical Service (Mechanical Teardown, Component Hardware)
Official Reference ID	TM1080

Preserve Agricultural History

A failed PTO gearbox on your 6601 or a fatigued leveling pivot on your 6602 can permanently sideline these incredible pieces of agricultural heritage. Equip your restoration mechanics with the John Deere 6601 & 6602 Combine Repair Manual TM1080 today, and secure the vital mechanical data needed to keep them harvesting strong.
