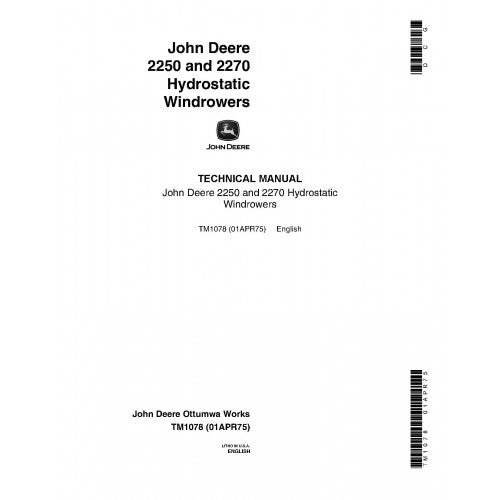

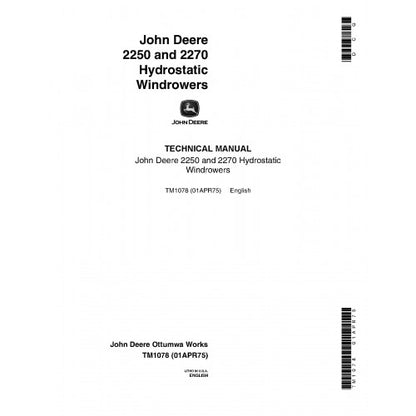

TM1078 John Deere 2250 and 2270 Self-Propelled Windrowers Pdf Technical Service Manual

Mastering the Swath: Securing a clean cut and perfectly formed windrows requires your self-propelled harvesting equipment to operate with absolute mechanical precision.

Legacy Forage Harvesting: JD 2250 & 2270 Windrowers

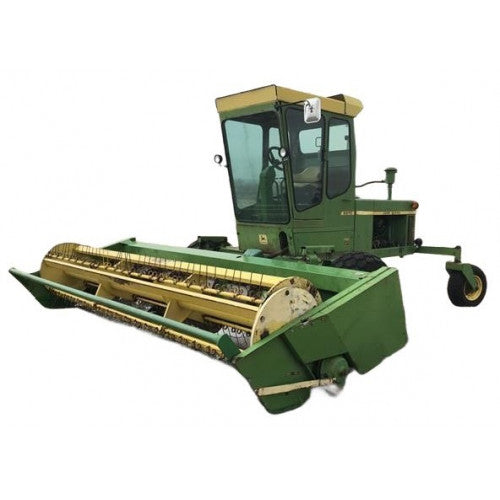

Before the era of heavily computerized agriculture, the John Deere 2250 and 2270 self-propelled windrowers earned their reputation as the reliable, heavy-iron workhorses of the hay and grain harvest. These classic swathers rely on robust hydrostatic propulsion systems, massive final drive planetary gears, and heavy mechanical header suspensions to lay down acres of crop. However, decades of traversing rough, uneven fields and pushing heavy cutting platforms through dense forage eventually wears down the steering geometry and fatigues the primary lift cylinders. When your trusted windrower loses tractive power or suffers a complete final drive failure, standard workshop guesses will only lead to further hardware damage. The John Deere 2250 and 2270 Self-Propelled Windrowers Technical Service Manual (TM1078) is the mandatory factory blueprint required to resurrect these dedicated machines.

Sourced directly from the vintage agricultural archives at manualsmarket.com, this factory-authored mechanical guide equips your farm mechanics with the precise hardware extraction sequences, safe lifting weights, and structural alignments dictated by the original engineers. Reconstructing your legacy swather to these uncompromising OEM standards ensures reliable ground speed, level header flotation, and maximum uptime during those short, critical harvesting windows.

Heavy Hardware Restoration Protocols

This technical service volume entirely avoids electrical circuitry and diagnostic codes, focusing all its specialized data strictly on the heavy physical wrenching and hardware reconstruction of the windrower's core mechanics:

1. Hydrostatic Propulsion & Hydraulics: Reclaim lost ground power. The manual details the heavy rigging required to safely unbolt and extract the main hydrostatic propel pumps, rebuild the independent hydraulic wheel motors, and overhaul the high-pressure fluid delivery networks that drive the machine.
2. Planetary Final Drives: Ensure torque transfer to the drive tires. Navigate the physical teardown of the heavy final drive reduction housings, replace shattered sun gears and planetary pinions, and rebuild the primary load-bearing axle hubs.
3. Header Lift & Flotation Geometry: Maintain a perfect cutting height across rolling terrain. Discover the factory methods for removing the massive header lift cylinders, rebuilding the mechanical flotation springs, and replacing worn pivot bushings on the main lift arms.
4. Steering Architecture & Caster Wheels: Eliminate high-speed wandering. Execute deep physical teardowns of the rear tail-wheel assemblies, rebuild the walking beam pivot bearings, and structurally align the steering linkages that govern the rear casters.
5. Primary Power Plant Rigging: Protect the main diesel engine. Follow strict safety instructions to drain the industrial cooling systems, attach specialized lifting chains, and hoist the heavy engine block cleanly away from the chassis for independent bench servicing.

Service Bay Interrogations (TM1078 Scope)

• Will this manual help me trace a short in the cab lighting or gauge cluster?
  Absolutely not. All electrical schematics, warning sensor wiring, and gauge diagnostics are exclusively documented in the companion Diagnostic, Operation, and Test manual. This TM1078 publication handles physical hardware replacement, mechanical teardowns, and iron reassembly exclusively.
• Are specific tightening torques provided for the final drive planetary gears?
  Yes. Because the entire weight of the front chassis and header rests on these wheel drives, the manual details mandatory torque tightening charts and hardware grades to prevent catastrophic wheel hub separation in the field.
• Can I use this archive to rebuild the internal diesel engine block?
  While this document thoroughly covers how to unbolt, rig, and physically extract the engine from the swather framework, deep internal diesel reconstruction (such as honing cylinders or replacing the crankshaft) requires the specific Component Technical Manual (CTM) authored for your exact power plant.

---

Machinery Blueprint Parameters

• Supported Windrowers: John Deere 2250 and 2270
• Machine Classification: Self-Propelled Windrowers / Swathers
• Harvesting Application: Hay, Forage, and Grain Windrowing
• Publication Discipline: Technical Service (Mechanical Teardown, Hardware Reconstruction)
• Official Reference Code: TM1078

A fatigued final drive or a leaking hydrostatic pump can permanently sideline your classic forage harvester. Equip your repair bay with the John Deere 2250 & 2270 Windrower Mechanical Manual TM1078 today, and secure the vital physical data needed to keep these vintage swathers cutting strong.
