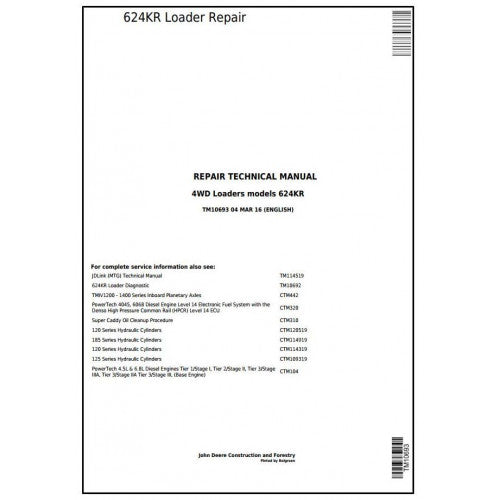

TM10693 John Deere 624KR 4WD Loader Pdf Repair Service Technical Manual

Industrial Iron Restoration: JD 624KR Workshop Teardown Protocol

The John Deere 624KR wheel loader is specifically designed to endure the most punishing material handling sectors. Whether deployed in corrosive waste management facilities, abrasive scrap metal recycling yards, or heavy industrial processing plants, the continuous shock-loading and directional shifting subject the machine's physical architecture to immense stress. When the center pivot joint develops hazardous play or the drivetrain begins to falter under dense payloads, your maintenance facility requires exact engineering tolerances to execute a permanent fix. The John Deere 624KR 4WD Loader Repair Service Technical Manual (TM10693) is your definitive structural blueprint, supplying the factory-certified mechanical data required to completely remanufacture this heavy-duty asset.

Heavy-Line Execution Phases

Delivered as a searchable digital archive, this structural documentation bypasses commercial dealership queues by empowering your own master mechanics to perform deep hardware extractions directly on the shop floor. The manual is strategically segmented into core mechanical zones:

• Drivetrain & Axle Rehabilitation: Maintaining maximum tractive effort in slippery or debris-filled yards requires a flawless powertrain. This section dictates the necessary shim calculations, pinion backlash measurements, and heavy fastening torques needed to physically rebuild the front and rear axles, overhaul inboard planetary gears, and replace worn differentials.
• Articulation & Loader Linkage Extraction: Eliminating dangerous bucket deflection is paramount for site safety. The text details the authorized heavy-pressing instructions and thermal guidelines required to safely extract fatigued center pivot pins, replace massive forward lift arms, and install new Z-bar linkage bushings.
• Hydraulic Hardware Resealing: Prevent catastrophic fluid leaks under maximum breakout force. Mechanics are supplied with the precise torque sequences for high-yield piston retaining nuts, enabling the safe unbolting, dismantling, and repacking of the massive lift, tilt, and steering hydraulic cylinders.
• Prime Mover Hoisting Protocols: The document outlines the safe heavy-rigging sequences needed to disconnect fluid lines, unbolt structural mounts, and physically lift the main diesel powerplant out of the rear chassis to facilitate deep external bench repairs.

Operational Service Scope: Hardware vs. Diagnostics

To ensure absolute efficiency within your service bays, it is critical to enforce the specific engineering boundary of this TM10693 document. This is strictly a physical disassembly and structural remanufacturing guide.

Covered Hardware Procedures: This file comprehensively maps out mechanical clearance measurements, physical extraction steps, the safe rigging protocols for engine removal, and structural iron wear limits.

Excluded Analytical Data: This text completely omits electrical wiring topography, CAN bus network tracing, fluid flow benchmarking, and Diagnostic Trouble Code (DTC) resolution. If a technician needs to evaluate a faulty transmission control module or trace an intermittent sensor, they must transition to the companion Diagnostic, Operation, and Test manual. Furthermore, deep internal diesel block rebuilding requires a prime-mover-specific component document.

TM10693 Blueprint Specifications

Do not allow a failing planetary gearset or compromised articulation bearings to paralyze your industrial processing schedule. Equip your facility with the John Deere 624KR Repair Manual TM10693 and secure the uncompromised physical data needed to restore your loader to its maximum engineered pushing power.
