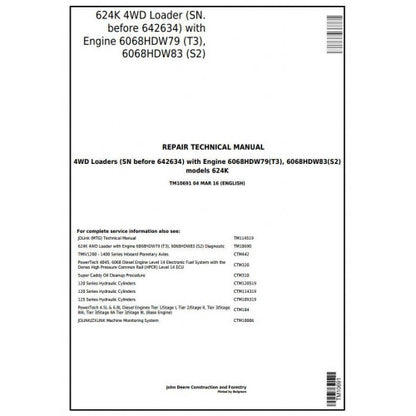

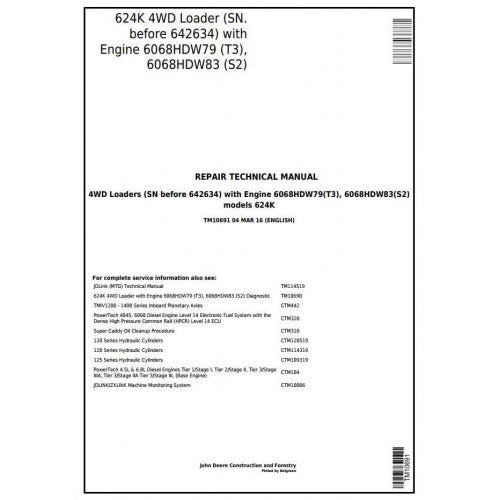

TM10691 John Deere 624K 4WD Loader Pdf Repair Service Technical Manual

Structural Lifecycle Management: JD 624K Mechanical Blueprint (SN <642634)

The John Deere 624K serves as a cornerstone asset across municipal public works, agricultural feedlots, and mid-size civil construction sites. When a highly versatile utility material handler manufactured prior to serial number 642634 accumulates thousands of high-stress operating hours, physical component degradation is inevitable. Whether your shop is dealing with a severely worn center articulation joint or a failing front differential, executing a permanent fix requires exact engineering tolerances. The John Deere 624K 4WD Loader Repair Service Technical Manual (TM10691) supplies your heavy-line facility with the authoritative, factory-certified mechanical blueprints necessary to completely tear down, remanufacture, and safely reassemble this vital earthmover.

Primary Deconstruction Zones

Delivered digitally, this structural archive allows your in-house maintenance division to confidently bypass dealership labor bottlenecks. The manual strategically divides the machine into distinct mechanical zones, ensuring your technicians have the precise heavy-iron data required for every phase of the rebuild:

Powertrain & Axle Overhauls: Maintaining maximum pushing power into a gravel stockpile requires a flawless drivetrain. This blueprint dictates the mandatory shim calculations, pinion backlash charts, and hardware torque tolerances needed to safely rebuild the front and rear axles. Mechanics can utilize these steps to execute an inboard planetary gearset extraction and replace worn differentials directly on the shop bench.

Z-Bar Linkage & Articulation Reconstruction: Eliminating dangerous bucket deflection is critical for operator safety and load management. The text details the specific heavy-pressing guidelines and thermal limits required to extract fatigued center pivot pins, remount massive forward lift arms, and install new Z-bar linkage bushings to restore rigid steering control.

High-Yield Cylinder Resealing: Prevent catastrophic fluid weeping under maximum breakout force. Your mechanics are supplied with the exact torque sequences for the high-yield piston retaining nuts, enabling the safe unbolting, dismantling, and repacking of the massive lift, tilt, and steering hydraulic cylinders.

Prime Mover Hoisting Sequences: Gain access to the authorized heavy-rigging protocols needed to disconnect high-pressure fluid lines, unbolt structural frame mounts, and physically lift the main diesel powerplant out of the rear chassis to facilitate deep external workbench restorations.

The Shop Floor Protocol: Mechanical vs. Analytical Scope

To maximize maintenance efficiency, your service planners must strictly enforce the operational boundary of this TM10691 document. This is a dedicated physical disassembly and structural remanufacturing guide.

It comprehensively covers mechanical clearance measurements, physical extraction steps, and structural iron wear limits. However, this publication explicitly excludes electrical wiring topography, CAN bus network tracing, fluid flow benchmarking, and Diagnostic Trouble Code (DTC) resolution. If a field technician needs to map a faulty transmission control circuit or evaluate pilot sensor logic, they must transition to the companion Diagnostic, Operation, and Test manual. Furthermore, deep internal restorations of the diesel engine block itself require a prime-mover-specific component document.

TM10691 Architectural Summary

Target Asset:

John Deere 624K 4WD Loader

Applicable Production Run:

SN. Before 642634

OEM Publication ID:

TM10691

Core Shop Utility:

Physical Hardware Teardown, Center Pivot Replacement, Structural Clearances

File Infrastructure:

Searchable Digital PDF Blueprint

Do not allow a failing planetary gearset or heavily compromised articulation bearings to dictate your civil construction schedule. Equip your facility with the John Deere 624K Repair Manual TM10691 and secure the uncompromised physical data needed to restore your mid-size loader to its maximum engineered capacity.
