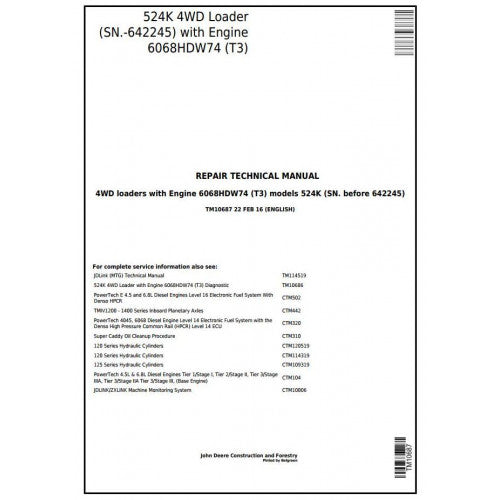

TM10687 John Deere 524K 4WD Loader Pdf Repair Service Technical Manual

Revitalizing Utility Frameworks: JD 524K Mechanical Overhauls (SN <642245)

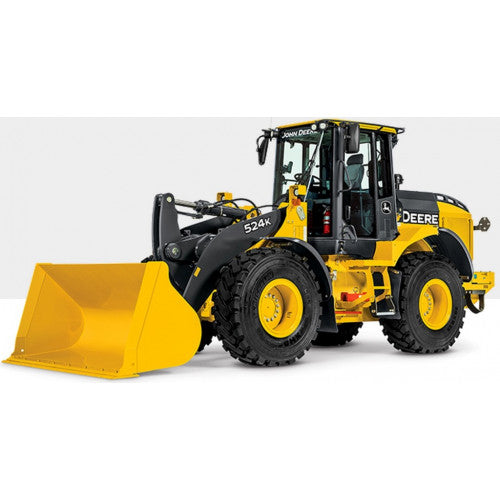

Operating in constrained urban staging areas, active lumber yards, and demanding municipal salt depots, the John Deere 524K wheel loader executes continuous, high-cycle material transfer. Over thousands of hours, pushing dense payloads takes a severe physical toll on the machine's structural architecture. When loaders manufactured prior to serial number 642245 experience degraded articulation joints or grinding final drives, relying on intuition to reassemble heavy iron is a critical safety risk. The John Deere 524K 4WD Loader Repair Service Technical Manual (TM10687) serves as your master mechanical blueprint, delivering the precise, factory-certified dimensional tolerances required to tear down and reconstruct this agile utility earthmover.

[Image of John Deere 524K wheel loader front axle and differential extraction]

Hardware Intervention Sectors

Available for rapid digital retrieval, this structural archive empowers your heavy-line maintenance division to bypass dealership backlogs and execute deep mechanical restorations safely in-house. The documentation strategically maps out the loader's physical zones:

• Drivetrain Component Extractions: Transferring reliable torque to the ground requires an uncompromising powertrain. This section dictates the critical shim calculations, pinion backlash measurements, and heavy hardware fastening metrics needed to rebuild the front and rear axles, overhaul the inboard planetary gears, and replace fatigued differentials.
• Articulation & Boom Linkage Replacements: Eradicate dangerous bucket deflection and steering wander. The manual provides the authorized heavy-pressing instructions and thermal limits necessary to extract seized center pivot pins, install new Z-bar linkage bushings, and physically remount the massive forward lift arms.
• High-Pressure Cylinder Resealing: Prevent catastrophic fluid weeping under maximum material breakout force. Mechanics gain access to the exact torque sequences for high-yield piston retaining nuts, enabling the safe unbolting, structural dismantling, and repacking of the primary lift, tilt, and steering hydraulic cylinders.
• Engine Rigging & Removal Protocols: Discover the authorized heavy-hoisting sequences required to safely disconnect fluid reservoirs, unbolt structural frame mounts, and physically lift the main diesel powerplant out of the rear chassis to facilitate deep external workbench restorations.

[Image of utility wheel loader center articulation joint pin pressing and replacement]

The Service Mandate vs. Exclusions

To ensure your shop floor operates at peak efficiency, your maintenance planners must strictly enforce the operational boundaries of this specific TM10687 publication. This is a dedicated wrenches-on-iron tearing-down guide.

Covered Structural Data: This file is the absolute authority on mechanical clearance measurements, physical extraction procedures, and structural iron wear limits.

Excluded Analytical Data: This text deliberately and strictly omits electrical wiring topography, CAN bus network mapping, hydraulic flow benchmarking, and Diagnostic Trouble Code (DTC) resolution. If a field technician needs to map a faulty transmission control module or evaluate an intermittent pilot sensor, they must consult the companion Diagnostic, Operation, and Test manual. Furthermore, executing deep internal restorations of the diesel engine block itself mandates a completely separate, prime-mover-specific component document.

TM10687 Mechanical Blueprint Profile

• ► Target Material Handler: John Deere 524K 4WD Loader
• ► Applicable Production Era: SN. Before 642245
• ► Official OEM Document ID: TM10687
• ► Core Shop Application: Physical Hardware Teardown, Z-Bar Pin Replacement, Axle Overhauls
• ► Digital Infrastructure: Searchable PDF Blueprint

Do not allow a compromised final drive or severely worn articulation bearings to dictate your utility fleet's schedule. Equip your maintenance facility with the John Deere 524K Repair Manual TM10687 and secure the uncompromised physical data needed to restore your loader to its maximum engineered capacity.
