TM10545 John Deere 220DW Wheeled Excavator Pdf Repair Service Technical Manual

Overcome Urban Mobility Bottlenecks: JD 220DW Mechanical Solutions

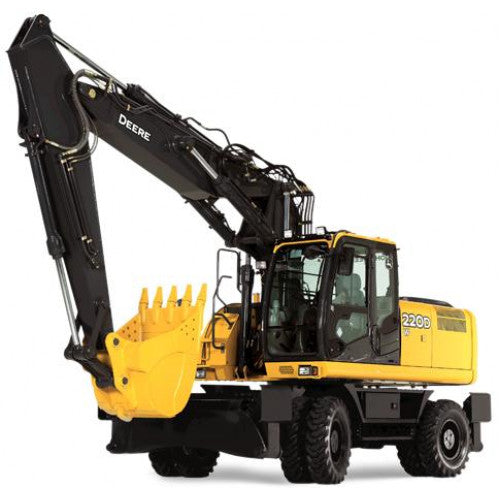

The John Deere 220DW wheeled excavator provides a massive logistical advantage for municipal road crews, bridge maintenance contractors, and urban utility developers. Its rubber-tired chassis allows it to travel independently across finished asphalt and concrete without requiring a specialized lowboy trailer, drastically reducing deployment times. However, when a catastrophic physical failure strikes—such as a seized steering axle, a shattered outrigger mount, or a severely compromised boom linkage—this mobility is instantly neutralized. Attempting to maneuver a disabled, 22-metric-ton wheeled asset through congested city traffic to a commercial dealership is a logistical nightmare. The John Deere 220DW Wheeled Excavator Repair Service Technical Manual (TM10545) serves as your definitive on-site problem solver. It outfits your heavy repair mechanics with the exact, manufacturer-authored extraction sequences necessary to conquer severe structural breakdowns directly at the job site or in your own municipal yard.

Available for rapid digital integration into your field service trucks, this comprehensive structural guide completely bypasses the delays of external dealer repairs. It equips your internal service division with the precise physical tolerances and heavy-hoisting procedures required to permanently resolve severe mechanical fatigue on your mobile earthmover.

Targeted Interventions for Rubber-Tired Excavators

Shift your maintenance strategy away from temporary roadside fixes toward advanced, wrenches-on-iron rehabilitation. This specific manual strictly omits electronic network troubleshooting to deliver authoritative, step-by-step solutions for the highly specialized physical assemblies of the 220DW:

• Wheeled Drivetrain & Axle Restoration: Overcome complete losses of machine mobility. The manual outlines the required heavy-lifting points and unbolting sequences to safely extract the steering cylinders, rebuild the front and rear differentials, and overhaul the planetary drives to restore safe highway travel.
• Stabilizer & Outrigger Reconstruction: Eliminate dangerous machine sway during heavy trenching. Access the exact heavy-pressing methodologies and shim measurements required to rebuild the forward dozer blade linkages and rear outrigger legs, ensuring absolute stability on uneven pavement.
• Forward Digging Linkage Renewal: Eradicate dangerous bucket slop when excavating around active municipal water lines. Utilize specialized pressing procedures and factory wear limits to safely swap out fatigued boom pivot pins, stick linkages, and heavy-duty trenching bucket bushings.
• High-Pressure Fluid Sealing: Stop the continuous, hazardous loss of hydraulic fluid onto public roadways. Obtain the mandated tightening sequences and specialized tooling requirements for the massive piston head retaining nuts, guaranteeing a permanent seal within the boom, arm, and stabilizer cylinders.
• Prime Mover Disconnection: Execute the safe mechanical unbolting and heavy rigging protocols necessary to physically pull the diesel powerplant vertically from the upper structure for replacement or external workbench rebuilding.

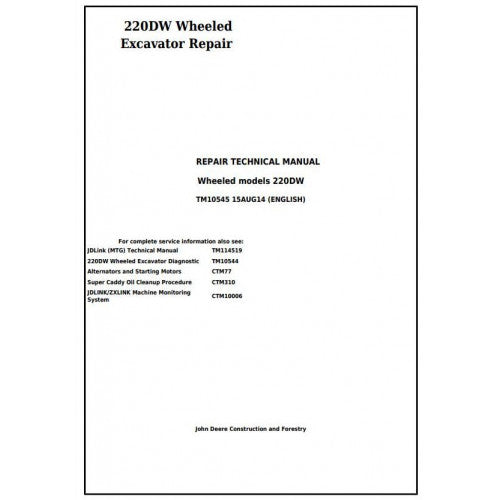

TM10545 Technical Document Profile

Machine Identity	Mechanical Archive Parameters
Target Asset	John Deere 220DW Wheeled Excavator
Equipment Profile	22-Metric-Ton Rubber-Tired Earthmover
Document Code	TM10545
Core Utility Focus	Structural Teardown & Heavy Component Reassembly
File Architecture	Searchable Digital PDF Archive

Who Resolves Maintenance Roadblocks With This Manual?

• Highway Infrastructure Crews: Keep your primary mobile trenching assets actively repairing roadways by executing massive linkage and axle rebuilds directly at the municipal depot before a failing component causes a roadside breakdown.
• Urban Utility Supervisors: Address severe structural wear on your wheeled earthmoving fleet internally, bypassing the massive transport logistics and prolonged wait times associated with commercial dealership backlogs.
• Mobile Heavy-Line Mechanics: Confidently accept lucrative wheeled-excavator teardowns knowing your team possesses the exact physical tolerances required to rebuild the specialized axles and outriggers of this JD machine.

Heavy Hardware Troubleshooting FAQ

Will this guide help my shop trace CAN-bus communication errors or read dashboard DTCs?

No. Tracing electrical shorts, deciphering monitor codes (DTCs), and evaluating electronic pilot sensor networks belong entirely within the companion Diagnostic, Operation, and Test manual. This specific TM10545 text is strictly dedicated to heavy wrenches-on-iron repairs and mechanical hardware assembly.

Can my mechanics utilize this text to rebuild the internal diesel cylinder block?

This reference details the safe hoisting methods and mechanical disconnection sequences necessary to physically remove the primary engine assembly from the excavator's frame. Deep internal block restorations—such as pressing in liners or replacing the crankshaft—require a separate Component Technical Manual authored specifically for that prime mover.

Does this download include the hydraulic schematic flow maps?

No. Fluid flow testing, pressure benchmarking, and hydraulic schematic maps are classified as analytical diagnostic tools and are located exclusively within the Operation and Test manual. This repair guide covers the physical unbolting, heavy resealing, and remounting of the hydraulic hardware.

Is the document formatted so my team can print specific outrigger torque charts for the shop bench?

Absolutely. The digital format allows your heavy-line mechanics to print precise fastening charts, torque specs, and exploded hardware views. This ensures the exact numerical data is at the toolbox, protecting your digital devices from heavy grease and site mud.

Secure Your Mobile Excavation Workflow

Do not allow a failing steering axle or a severely worn boom linkage to paralyze your urban utility operations. Secure the John Deere 220DW Repair Manual TM10545 today and arm your heavy repair bay with the uncompromised mechanical data required to restore your wheeled excavator to strict factory standards.
