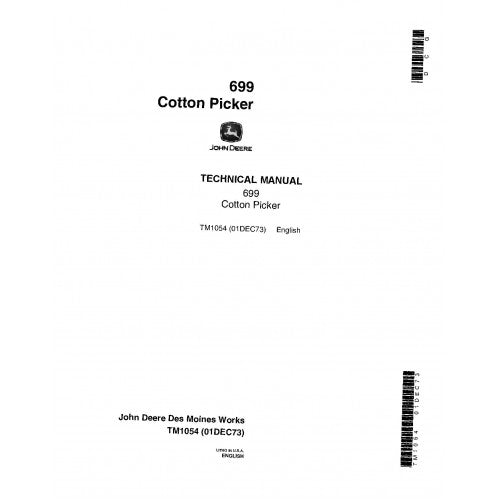

TM1054 John Deere 699 Cotton Pickers Pdf Technical Service Manual

Securing Fiber Quality: JD 699 Cotton Pickers

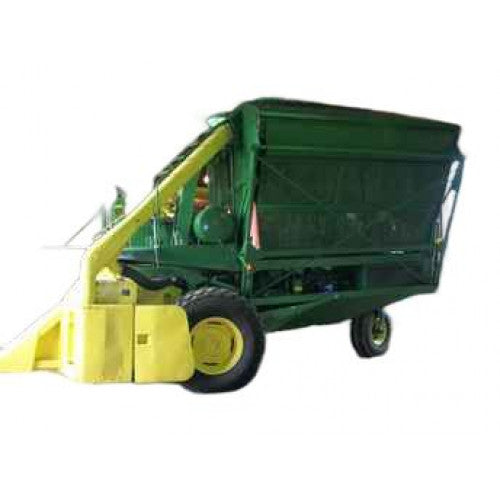

The John Deere 699 self-propelled cotton picker is a classic powerhouse built to extract pristine lint through a complex synchronization of moving iron. Mechanized spindle harvesting requires thousands of internal components—from the rotating spindle bars to the polyurethane doffers—to interact flawlessly while being constantly bombarded by sticky plant sap, abrasive dirt, and tough defoliated stalks. When decades of heavy harvesting eventually degrade the picking unit cam tracks or shatter a primary blower fan bearing, your operation cannot rely on improvised repairs. The John Deere 699 Cotton Pickers Technical Service Manual (TM1054) provides the exact physical blueprint required for a complete, factory-grade structural restoration.

Procured straight from the agricultural data archives at manualsmarket.com, this factory-authored mechanical guide equips your implement mechanics with the precise hardware extraction sequences, safe lifting weights, and critical structural alignments established by the original engineers. Rebuilding your legacy 699 picker to these strict OEM standards protects delicate cotton grades, prevents explosive in-field component failures, and maximizes your daily harvesting capacity.

---

Targeted Physical Teardown Zones

This technical service archive completely avoids electrical circuit tracing, dedicating its specialized knowledge strictly toward the heavy wrenching and hardware reconstruction of the cotton picker's core mechanical systems:

1. Picking Drum & Spindle Architecture: Master the heavy rigging required to safely dismantle the front harvesting headers. The manual provides exact procedures for extracting individual picker bars, replacing worn spindle bushings, rebuilding the internal cam tracks, and aligning the primary drum drive gears.
2. Doffer & Moistener Columns: Maintain clean cotton separation and prevent spindle wrapping. Navigate the physical teardown of the vertical doffer columns, overhaul the heavy-duty support bearings, and set the exact factory clearance between the doffer pads and the spindles. This section also covers rebuilding the mechanical water delivery pumps.
3. Pneumatic Delivery & Basket Hardware: Ensure flawless lint conveyance to the hopper. Extract the massive blower fans, replace high-speed rotor bearings, and execute deep physical teardowns of the heavy main basket lift cylinders, compaction augers, and structural hinges.
4. Propulsion & Chassis Mechanics: Reconstruct the mechanical power delivery network. Discover the teardown steps to safely remove the main drive pumps, rebuild the heavy planetary final drives, and service the rear steering axle spindles to maintain steering authority in soft field conditions.
5. Power Plant Rigging: Follow strict safety protocols to drain industrial cooling networks, attach specialized lifting brackets, and hoist the heavy engine block cleanly away from the upper chassis deck for independent bench servicing.

Workshop Clarifications (TM1054 Boundaries)

• Will this manual help me troubleshoot a dead warning gauge on the dashboard?
  No. All electrical schematics, wire harness routing, and gauge diagnostics are exclusively documented in the companion Diagnostic, Operation, and Test manual. This TM1054 publication handles physical hardware replacement, mechanical teardowns, and iron reassembly exclusively.
• Are specific tightening torques provided for the spindle retaining nuts?
  Yes. Because the picking drum operates under extreme, synchronized kinetic stress, the manual details mandatory torque tightening charts for all rotating hardware. Fastening these internal components to the exact factory specification is critical to prevent metal-on-metal collisions inside the drum.
• Does this physical repair guide cover internal diesel engine reconstruction?
  While this document details the complex physical unbolting and removal of the main engine from the picker chassis, deep internal diesel repairs (like replacing pistons) require the separate Component Technical Manual (CTM) authored specifically for your engine block.

Machinery Blueprint Parameters

Equipment Identity	Technical Details
Supported Harvester	John Deere 699
Harvesting Classification	Self-Propelled Cotton Picker
Crop Processing Method	Mechanical Spindle Harvesting
Service Discipline	Technical Service (Mechanical Teardown, Hardware Reconstruction)
Official Reference ID	TM1054

---

A worn doffer bearing or a seized picker bar can completely paralyze your cotton harvest. Equip your repair facility with the John Deere 699 Cotton Picker Repair Manual TM1054 today, and secure the vital physical data needed to keep this classic harvester operating at peak efficiency.
