TM1050 John Deere 800 and 830 Self-Propelled Windrowers Pdf Technical Service Manual

Dedicated Forage Cutting: JD 800 & 830 Windrowers

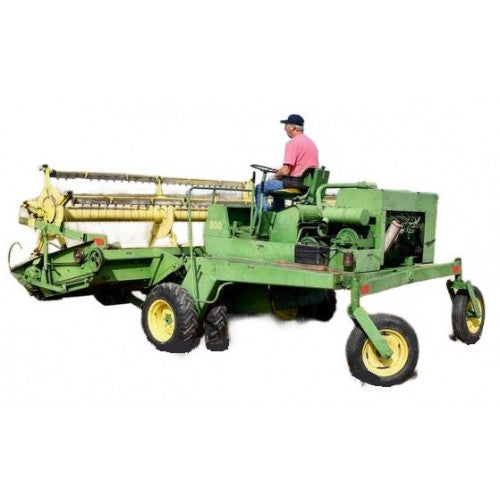

The transition from pull-type hay equipment to dedicated, self-propelled platforms revolutionized large-scale forage harvesting. The vintage John Deere 800 and 830 windrowers were at the forefront of this shift, utilizing heavy mechanical header drives, dedicated hydrostatic propulsion, and wide cutting platforms to lay down massive swaths of crop. However, decades of pushing sickle bars through dense, tangled hay and navigating rough terrain eventually fatigues the primary lift linkages and destroys hydrostatic wheel motors. When your classic swather loses ground drive power or suffers a shattered header gearbox, standard farm repairs are insufficient. The John Deere 800 and 830 Self-Propelled Windrowers Technical Service Manual (TM1050) provides the exact, uncompromising physical blueprint required for a complete structural restoration.

Sourced directly from the vintage machinery archives at manualsmarket.com, this factory-authored mechanical guide equips your agricultural repair bay with the precise hardware extraction sequences, structural alignments, and heavy lifting tolerances established by the original engineers. Rebuilding your legacy windrower to these strict OEM standards ensures consistent ground speed, aggressive cutting action, and maximum uptime during critical haymaking windows.

---

Equipment Blueprint Specifications

Machinery Profile	Technical Parameters
Supported Machinery	John Deere 800 and 830
Equipment Classification	Self-Propelled Windrowers (Swathers)
Agricultural Application	Hay, Forage, and Grain Harvesting
Publication Discipline	Technical Service (Mechanical Teardown, Hardware Reconstruction)
Official Reference ID	TM1050

Actionable Implement Teardown Zones

This technical service archive completely avoids electrical circuit tracing, directing its specialized focus strictly toward the heavy wrenching and hardware reconstruction of the swather's primary mechanical zones:

• Hydrostatic Propulsion & Hydraulics: Reclaim lost tractive effort. The manual details the heavy rigging required to safely unbolt and extract the main hydrostatic propel pumps, rebuild the independent hydraulic wheel motors, and overhaul the high-pressure fluid delivery networks that drive the machine forward.
• Header Drive & Cutting Mechanics: Ensure aggressive crop severing. Navigate the physical teardown of the heavy mechanical PTO drives that power the platform. Discover the factory methods for overhauling the wobble box, replacing the sickle bar drives, and rebuilding the massive conditioning roll bearings.
• Steering Architecture & Caster Wheels: Eliminate high-speed wandering and field drift. Execute deep physical teardowns of the rear tail-wheel assemblies, rebuild the walking beam pivot bushings, and structurally realign the steering linkages that govern the rear casters.
• Primary Power Plant Rigging: Protect the main diesel engine. Follow strict safety instructions to drain the industrial cooling systems, attach specialized lifting chains, and hoist the heavy engine block cleanly away from the upper chassis deck for independent bench servicing.

Service Bay Clarifications (TM1050 Boundaries)

1. Will this manual help me troubleshoot the dashboard warning gauges?
   No. All electrical schematics, warning sensor wiring, and gauge diagnostics are exclusively documented in the companion Diagnostic, Operation, and Test manual. This TM1050 publication handles physical hardware replacement, mechanical teardowns, and heavy iron reassembly exclusively.
2. Are specific tightening torques provided for the hydrostatic wheel motors?
   Yes. Because the entire weight of the front chassis rests on these independent drives, the manual details mandatory torque tightening charts and hardware grades to prevent catastrophic wheel hub separation while traversing rough fields.
3. Does this physical repair guide cover internal diesel engine reconstruction?
   While this document thoroughly covers how to unbolt, rig, and physically extract the engine from the windrower framework, deep internal diesel block repairs (like replacing pistons or bearings) require the specific Component Technical Manual (CTM) authored for your exact power plant.

---

A fatigued hydrostatic pump or a seized header drive can permanently sideline your classic forage harvester. Equip your repair bay with the John Deere 800 & 830 Windrower Mechanical Manual TM1050 today, and secure the vital physical data needed to keep these vintage swathers cutting strong.
