TM10246 John Deere 644J 4WD Loader Pdf Repair Service Technical Manual

Deep-Iron Reconstruction: JD 644J Mechanical Blueprint (SN 611232+)

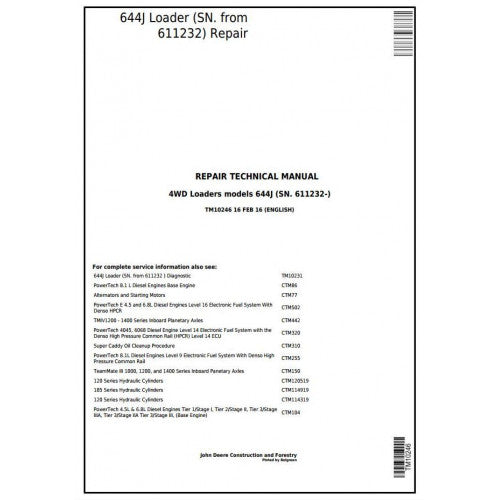

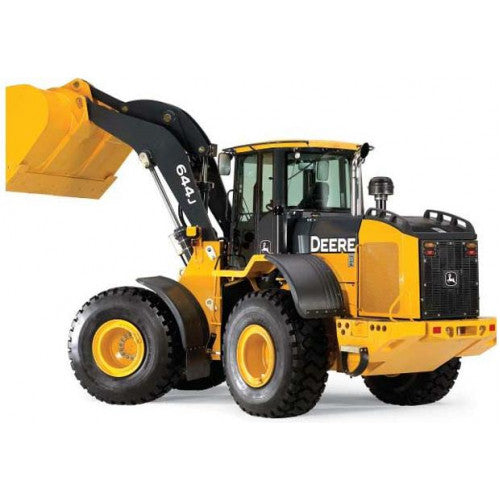

Positioned as a highly adaptable workhorse, the John Deere 644J frequently anchors operations in heavy aggregate recycling, industrial batch plants, and large-scale municipal road infrastructure. Surviving thousands of hours of continuous forward-to-reverse cycling and violent bucket breakout forces takes an undeniable toll on the loader's heavy-duty architecture. When a machine built from serial number 611232 and above suffers a critical physical failure, such as a fractured final drive or severe slop in the articulation joint, relying on tribal knowledge to rebuild the iron is a costly liability. The John Deere 644J 4WD Loader Repair Service Technical Manual (TM10246) acts as your shop's master structural reference, supplying the exact manufacturer-engineered clearances required to confidently dismantle and restore this mid-tier mass mover.

Categorized Hardware Restorations

Available for immediate digital allocation, this comprehensive structural guide eliminates the need to outsource complex teardowns to commercial dealerships. The manual provides heavily detailed, step-by-step unbolting and remanufacturing sequences divided into major mechanical zones:

Axle & Powertrain Overhauls:

Regaining maximum tractive effort on slippery job sites requires a tightly calibrated drivetrain. Your mechanics will access mandatory shim calculations, pinion backlash tolerances, and specific heavy-hardware fastening metrics necessary to physically rebuild the front and rear axles. These precise measurements are crucial when performing an inboard planetary gear remanufacturing procedure on the shop bench.

Z-Bar Linkage Extraction:

Dangerous boom sway and bucket deflection severely compromise site safety. This blueprint outlines the authorized heavy-pressing instructions and thermal guidelines needed to safely extract seized center pivot pins, install new loader linkage bushings, and remount the primary forward lift arms.

High-Pressure Cylinder Repacking:

To stop continuous fluid weepage under heavy payloads, technicians are supplied with the exact torque sequences for high-yield piston retaining nuts. This guarantees the safe structural dismantling and resealing of the enormous lift, tilt, and steering hydraulic cylinders.

Prime Mover Rigging Protocols:

Discover the authorized heavy-hoisting sequences required to safely disconnect fluid reservoirs, unbolt structural frame mounts, and physically lift the main diesel powerplant out of the rear chassis to facilitate deep external workbench restorations.

Technical Exclusions: What This Manual Does Not Cover

To ensure your heavy-line mechanics are referencing the correct data, it is vital to respect the strict engineering scope of this TM10246 document. It is exclusively engineered for physical hardware restoration.

This archive explicitly omits electrical wiring topography, CAN bus network mapping, hydraulic pilot flow benchmarking, and Diagnostic Trouble Code (DTC) resolution. If a technician needs to map a faulty transmission control module or evaluate sensor voltage, they must transition to the companion Diagnostic, Operation, and Test manual. Furthermore, executing deep internal restorations of the diesel engine block itself mandates a completely separate, dedicated engine component document.

Target Workshop Application

Do not allow a fractured front differential or severely compromised articulation bearings to paralyze your material handling quotas. Equip your maintenance facility with the John Deere 644J Repair Manual TM10246 and secure the uncompromised physical data needed to restore your loader to its maximum engineered capacity.
