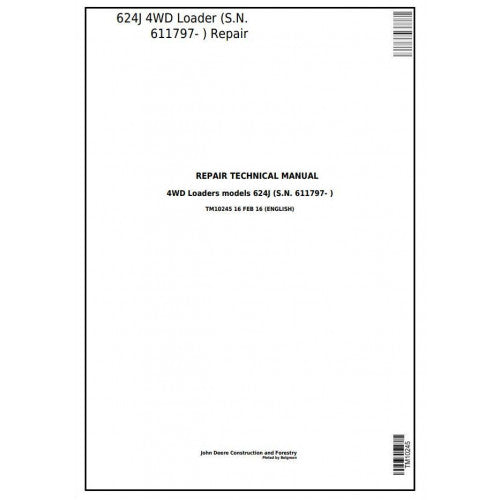

TM10245 John Deere 624J 4WD Loader Pdf Repair Service Technical Manual

Mastering Mid-Weight Iron: JD 624J Structural Rebuilds (SN 611797+)

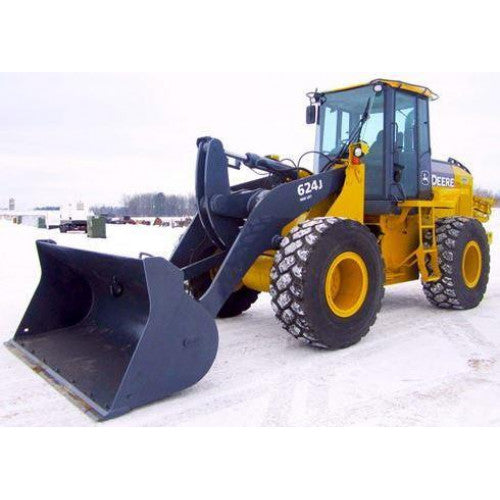

The John Deere 624J is the definitive mid-size material handler, seamlessly transitioning between demanding municipal pipe-laying operations, relentless agricultural feedlot trenching, and regional gravel yard staging. Continuously ramming into dense stockpiles subjects the machine's primary architecture to extreme torsional stress. When a wheel loader manufactured from serial number 611797 onward suffers a structural failure—whether it is a shattered front differential or severe degradation in the articulation joint—your maintenance team cannot afford to rely on estimated torque values. The John Deere 624J 4WD Loader Repair Service Technical Manual (TM10245) equips your heavy-line mechanics with the exact, manufacturer-engineered dimensional tolerances required to safely dismantle, remanufacture, and reconstruct this essential utility asset.

The Teardown Roadmap: Hardware Restorations

Procured digitally for immediate shop-floor access, this structural archive keeps deep mechanical restorations localized to your own maintenance bay, eliminating costly dealership delays. The manual strategically breaks down the 624J into critical mechanical intervention zones:

• Drivetrain Component Extractions: Maintaining maximum pushing power into a wet clay pile requires an uncompromised powertrain. This blueprint supplies the necessary shim calculations, pinion backlash measurements, and heavy hardware fastening metrics needed to rebuild the front and rear axles. Master mechanics use this data to execute an inboard planetary gearset remanufacturing procedure right on the workbench.
• Articulation Geometry & Linkage: Eliminate dangerous boom sway and restore precise steering response. The text details the authorized heavy-pressing instructions and thermal guidelines required to safely extract fatigued center pivot pins, install new Z-bar linkage bushings, and remount the primary forward lift arms.
• Hydraulic Sealing Protocols: Prevent catastrophic fluid weeping under maximum material breakout force. Mechanics gain access to the precise torque sequences for high-yield piston retaining nuts, enabling the safe unbolting, structural dismantling, and repacking of the massive lift, tilt, and steering hydraulic cylinders.
• Prime Mover Hoisting Sequences: Discover the authorized heavy-rigging protocols required to safely disconnect fluid reservoirs, unbolt structural frame mounts, and physically lift the main diesel powerplant out of the rear chassis to facilitate deep external workbench restorations.

Service Bay Directive: Scope and Exclusions

To ensure your shop floor operates at peak efficiency and avoids misdirected labor hours, it is vital to enforce the strict operational boundaries of this specific TM10245 publication.

Target Engineering Audiences

This factory-certified mechanical data is leveraged daily by Municipal Shop Foremen overhauling front axles prior to the winter plowing season, Agricultural Feedlot Mechanics performing routine pin and bushing replacements before a catastrophic linkage failure, and Heavy-Line Mobile Rebuilders executing complex hardware reassembly with uncompromised precision.

TM10245 Mechanical Archive Overview

Do not allow a fractured front differential or severely worn articulation bearings to dictate your utility fleet's availability. Equip your maintenance facility with the John Deere 624J Repair Manual TM10245 and secure the uncompromised physical data needed to restore your loader to its maximum engineered capacity.
