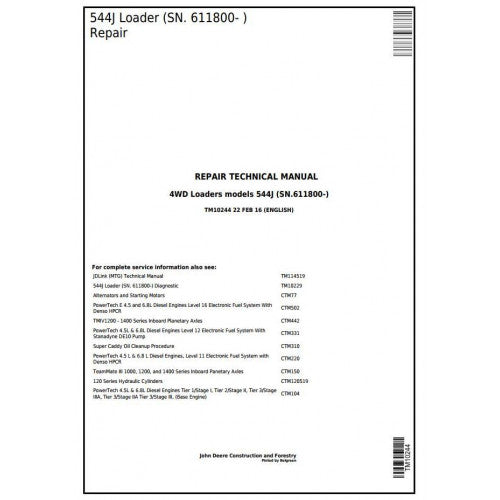

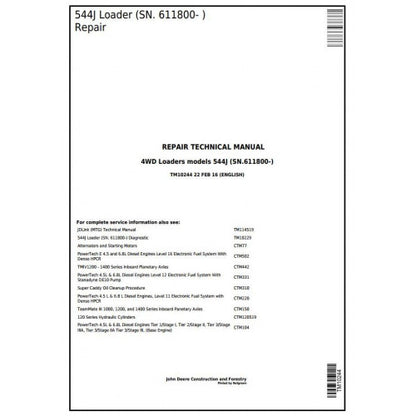

TM10244 John Deere 544J 4WD Loader Pdf Technical Service Manual

Restoring Municipal & Ag Iron: JD 544J Structural Blueprint (SN 611800+)

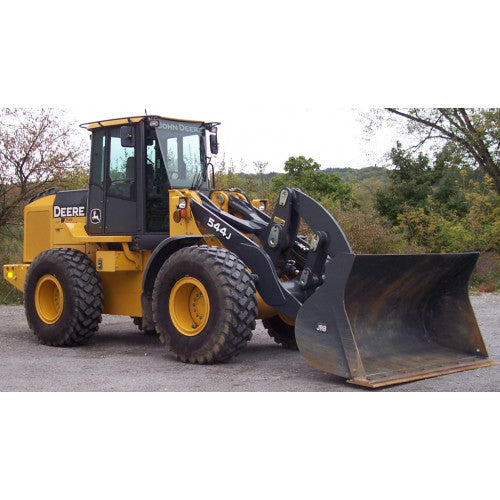

The John Deere 544J wheel loader is the quintessential utility-class workhorse. Whether it is navigating tight suburban intersections during municipal snow-clearing operations, loading salt spreaders, or performing daily trenching in an active agricultural feed yard, this machine endures relentless physical strain. The constant transition from high-torque stockpile pushing to aggressive bucket breakout eventually accelerates iron fatigue across the boom and chassis. When a 544J built from serial number 611800 and above requires a massive mechanical intervention, relying on aftermarket guesswork is a profound safety risk. The John Deere 544J 4WD Loader Technical Service Manual (TM10244) operates as your shop's master structural authority, providing the factory-certified dimensional clearances necessary to completely dismantle, remanufacture, and reconstruct this agile material handler.

Core Mechanical Reassembly Phases

Distributed digitally, this comprehensive structural blueprint keeps heavy mechanical restorations localized to your own maintenance pad, bypassing costly commercial dealership labor rates. The manual guides heavy-line technicians through the physical restoration of the loader's heavily stressed architectural zones:

1. Drivetrain & Final Drive Restoration: Maintaining traction in a wet feedlot or icy municipal yard demands a flawless powertrain. This text dictates the mandatory shim calculations, pinion backlash charts, and heavy fastening metrics necessary to physically tear down the transmission and rebuild the front and rear axles. Master mechanics use these exact procedures to execute an inboard planetary gearset extraction directly on the heavy workbench.
2. Articulation Geometry & Z-Bar Linkage: Eradicate dangerous boom sway and restore precise steering control. The documentation provides the authorized heavy-pressing guidelines and thermal limits required to safely extract fatigued center pivot pins, install new Z-bar linkage bushings, and remount the massive forward lift arms.
3. Hydraulic Actuator Resealing: Prevent continuous fluid weepage under heavy payload stress. Technicians are supplied with the precise torque sequences for high-yield piston retaining nuts, enabling the safe unbolting, structural dismantling, and repacking of the primary lift, tilt, and steering hydraulic cylinders.
4. Prime Mover Hoisting Protocols: The blueprint outlines the authorized heavy-rigging sequences needed to safely disconnect main fluid lines, unbolt structural frame mounts, and hoist the main diesel powerplant out of the rear chassis to facilitate deep external bench repairs.

Common Technician Inquiries: The Service Boundary

To maximize shop floor efficiency, your maintenance planners must strictly enforce the operational boundaries of this TM10244 publication. It is exclusively engineered for physical hardware restoration.

Q: Does this manual contain the electrical schematics to resolve a flashing dashboard fault code?
A: No. This text is strictly a physical hardware and structural remanufacturing guide. It comprehensively details mechanical clearance measurements, physical extraction steps, and structural iron wear limits. It explicitly omits electrical wiring topography, CAN bus network mapping, hydraulic flow benchmarking, and Diagnostic Trouble Code (DTC) resolution. All digital and fluid analytics belong to the companion Diagnostic, Operation, and Test manual.

Q: Will this guide walk my mechanics through a deep internal diesel block rebuild?
A: This archive covers the structural unbolting, external rigging, and safe chassis removal of the prime mover. However, executing deep internal restorations of the diesel engine block itself mandates a completely separate, dedicated engine component document.

Primary Engineering Audience

This factory-certified mechanical data is utilized heavily by Municipal Fleet Managers overhauling utility axles prior to winter plowing seasons, Agricultural Co-op Maintenance Directors performing routine linkage pin replacements to avoid catastrophic boom failures, and Heavy-Line Mobile Rebuilders executing complex hardware reassembly with uncompromised precision.

TM10244 Mechanical Dossier Specifications

Do not allow a shattered front differential or severely worn articulation bearings to dictate your utility fleet's availability. Equip your maintenance facility with the John Deere 544J Repair Manual TM10244 and secure the uncompromised physical data needed to restore your loader to its maximum engineered capacity.
