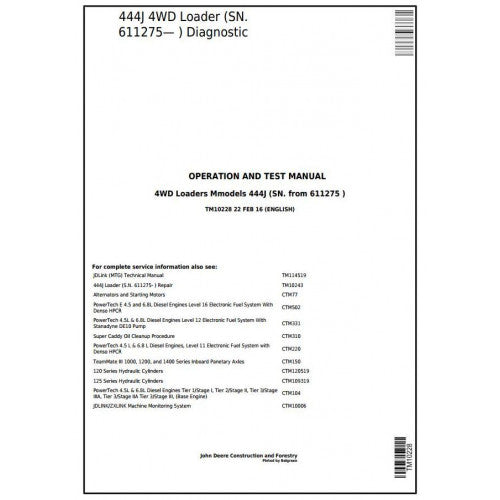

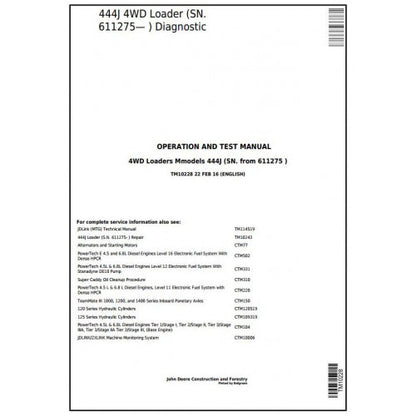

TM10228 John Deere 444J 4WD Loader Pdf Diagnostic, Operation and Test Service Manual

Agility in Analytics: JD 444J Network Command (SN 611275+)

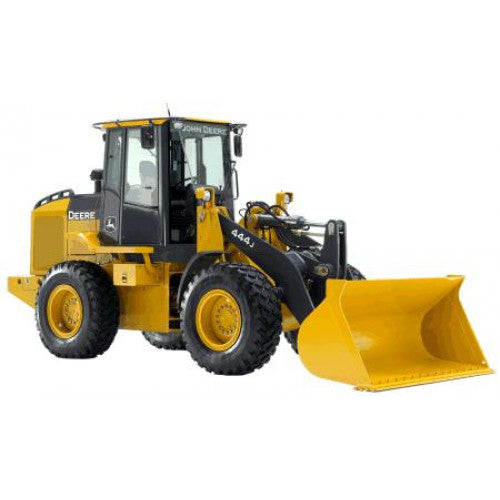

The John Deere 444J wheel loader thrives in restricted spaces, serving as the agile backbone for residential site preparation, compact landscaping supply yards, and tight municipal snow-clearing operations. Because of its compact footprint, operators rely heavily on instantaneous responsiveness from the machine's electro-hydraulic pilot valves and onboard transmission modules. When a unit manufactured from serial number 611275 onward suffers a sudden CAN bus communication timeout or erratic hydrostatic shifting, guessing the root cause paralyzes your daily material transfer. The John Deere 444J 4WD Loader Diagnostic, Operation and Test Service Manual (TM10228) supplies your heavy-line mechanics with the exact manufacturer-verified digital baselines required to interrogate these sensory networks and isolate faults permanently.

Strategic Fault Code Isolation

Procured digitally for immediate field deployment via Manualsmarket.com, this specialized testing archive totally eliminates the expensive habit of blind parts-swapping. The documentation directs your field diagnosticians through data-verified troubleshooting methodologies tailored specifically for compact earthmovers.

• DTC Logic Resolution: Modern compact loaders demand precise code translation. This dossier acts as the definitive OEM directory for all active dashboard Diagnostic Trouble Codes (DTCs). Mechanics gain access to the mandated logic trees necessary to securely test suspected sensory circuits, measure pilot resistance, and clear digital alerts without prematurely replacing functional electronic control units.
• Electrical Topography Mapping: Utilize the comprehensive, machine-specific wiring schematics to visually trace harness routing across the loader's central articulation joint. This exact routing data is mandatory for pinpointing vibration-induced ground faults and parasitic voltage drains that frequently impact compact loaders operating in high-cycle environments.

Benchmarking Compact Fluid Power

If the 444J exhibits a sluggish bucket rollback or lacks sufficient breakout force when penetrating a dense topsoil stockpile, your maintenance division must verify the fluid dynamics. This TM10228 document dictates the strict OEM procedures for hydraulic flow benchmarking.

By connecting diagnostic pressure gauges directly to authorized factory test ports, your shop can accurately evaluate the main implement pump output and test steering priority valve thresholds under simulated loads. This scientific testing strategy resolves erratic hydraulic responses and ensures the loader's hydrostatic transmission shift calibrations remain optimized for maximum pushing efficiency in tight quarters.

Enforcing Maintenance Boundaries

To maximize efficiency across your service trucks and avoid misdirected labor, shop foremen must clearly define the operational intent of this analytical publication.

Approved System Analytics: This file is the absolute authority for tracing CAN bus network topography, evaluating pilot control valve resistance, measuring high-capacity fluid line pressures, and calibrating the engine-to-hydraulic interface.

Restricted Mechanical Teardowns: This text explicitly omits physical hardware reconstruction. If a service ticket requires pressing out fatigued center pivot pins, overhauling the front differential planetary gears, or physically dismantling the heavy Z-bar linkages, mechanics must transition to the companion mechanical Repair Technical Manual. Furthermore, evaluating deep internal failures within the diesel prime mover itself requires a dedicated engine component blueprint.

TM10228 Digital Archive Specifications

Target Compact Equipment

John Deere 444J 4WD Loader

Applicable Manufacturing Era

SN. 611275 and Above

OEM Publication Code

TM10228

Core Diagnostic Utility

DTC Logic Translation, Network Harness Routing, Hydraulic Flow Benchmarking

Primary Service Audiences

Landscaping Fleet Managers, Residential Excavation Diagnosticians, Municipal Shop Foremen

Do not let an unresolved sensor logic error or a miscalibrated transmission solenoid throttle your material handling agility. Equip your field service vehicles with the John Deere 444J Diagnostic Manual TM10228 and protect your daily operational efficiency with uncompromising, factory-certified analytical data.
