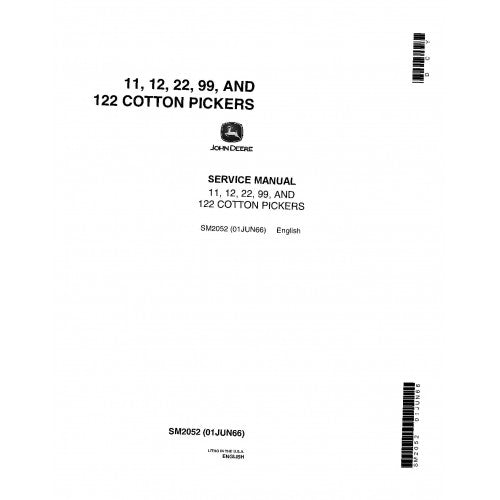

SM2052 John Deere 11, 12, 122, 22 and 99 Cotton Pickers Pdf Technical Service Manual

Reviving the Cotton Harvest: JD 11 to 99 Series Pickers

Extracting raw cotton from the boll requires a delicate yet mechanically violent process. The vintage John Deere 11, 12, 122, 22, and 99 cotton pickers achieved this through a highly complex orchestration of rotating spindles, urethane doffers, and moistener columns. Because the picking units are constantly exposed to abrasive dirt, plant sap, and continuous friction, the internal mechanical degradation is relentless. When standard greasing routines give way to the need for a complete picking drum teardown or a primary ground-drive rebuild, guessing at clearances will destroy your crop yield. The John Deere 11, 12, 122, 22, and 99 Cotton Pickers Technical Service Manual (SM2052) is the essential physical blueprint required to restore these legacy machines.

Procured straight from manualsmarket.com, this factory-authored mechanical archive equips vintage agricultural restorers and fleet mechanics with the exact structural extraction sequences, component lifting weights, and original manufacturing tolerances. Rebuilding your classic JD cotton picker to these strict OEM standards guarantees aggressive picking performance and safeguards your historical machinery investment.

Picking Unit Wrenching & Iron Overhaul

This technical publication completely bypasses electrical tracing, directing its extensive mechanical knowledge entirely toward actionable, physical hardware repairs:

1. Spindle & Picker Bar Extraction: Master the complex rigging required to safely dismantle the picking drum. Access the factory methods for extracting individual picker bars, replacing worn spindle bushings, and aligning the cam tracks.
2. Doffer & Moistener Mechanics: Restore clean cotton separation. The guide covers the heavy wrenching necessary to overhaul the doffer column bearings, adjust the doffer pad-to-spindle clearances, and rebuild the mechanical water delivery pumps.
3. Basket Lift Architecture: Navigate the physical repair of the heavy-duty basket lift arms. Execute teardowns of the mechanical linkages and structural hinges that support the massive weight of harvested cotton.
4. Primary Driveline Rigging: Safely drop the main power distribution gearboxes. The manual details the mechanical extraction of heavy drive belts, main transmission unbolting, and the restoration of the primary steering and drive axles.
5. Power Plant Hoisting Protocols: Protect the primary diesel engine. Follow strict instructions to drain cooling networks, attach specialized lifting chains, and hoist the heavy engine block cleanly away from the picker chassis for separate bench servicing.

Restorer's Knowledge Base: SM2052 Constraints

Q: Will this manual provide the electrical wiring schematics for the operator gauges?
A: No. All electrical schematics, gauge wiring, and circuit fault tracing are exclusively documented in the companion Diagnostic, Operation, and Test manual. This SM2052 publication is strictly dedicated to physical hardware replacement, mechanical teardowns, and iron reassembly.

Q: Are there fastening tolerances for the picking drum cam tracks?
A: Absolutely. Managing the extreme physical synchronization inside the picking unit requires exact precision. The manual provides mandatory torque tightening charts for all rotating picker bar components to prevent severe vibration or mechanical collisions.

Q: Can I utilize this guide to rebuild the engine's internal block?
A: While this guide instructs your shop on how to unbolt, rig, and physically extract the entire engine assembly from the cotton picker framework, deep internal diesel block reconstruction (like replacing pistons) requires the standalone Component Technical Manual (CTM) authored specifically for that vintage engine.

Legacy Equipment Profile

• Supported Cotton Harvesters: John Deere 11, 12, 122, 22, 99
• Harvesting Architecture: Mechanical Spindle Picking
• Manual Discipline: Technical Service (Mechanical Repair, Teardown, Hardware Assembly)
• Official Reference ID: SM2052

Secure Your Harvest Yield

A shattered picker bar bearing or a misaligned doffer column can permanently halt your cotton harvesting operation, leaving fiber vulnerable in the field. Equip your heavy mechanics with the John Deere 11-99 Cotton Picker Repair Manual SM2052 today, and secure the vital mechanical data needed to keep these powerful extraction machines operating flawlessly.
